SPECIFICATION OF WCMxxxxSE SERIES

FEATURE

1. Low DCR and excellent impedance characteristics.
2. High rated current.
3. Excellent common mode EMI noise suppression.
4. Virtually no distortion of signals.

APPLICATIONS

1. EMI suppression for power line , AC/DC adaptor, larger
electronic equipment, personal computers, peripherals, IoT etc.

ORDERING CODE.

1. Product TypeCode
2. Product Size Code
3. IMPEDANCE CODE
4. TAPING CODE

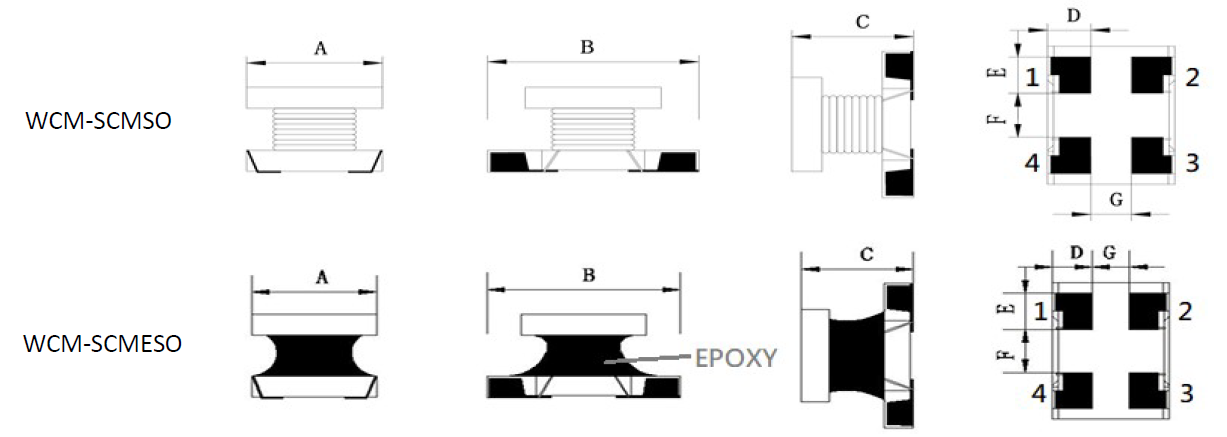

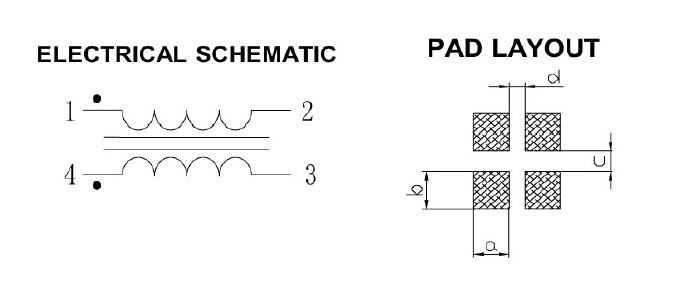

Appearance and Dimensions (mm)

APPEARANCE & DIMENSIONS											UNIT : mm (inch)
SIZE CODE	A ±0.30	B ±0.30	C ±0.15	D Ref.	E Ref.	F Ref.	G Ref.	a	b	c	d	Series Spec.
WCM-5025SCMSO	3.60	5.00	2.35	1.25	1.70	1.60	1.00	1.80	2.40	1.20	0.80
WCM-5025SCMESO	3.60	5.00	2.35	1.25	1.70	1.60	1.00	1.80	2.40	1.20	0.80

1. Other sizes are available upon request.
2. All the data listed in this catalogue are for reference only; King Core reserves
   the right to alter or revise the specifications without prior notification.
