WCM-SCMSO SERIES

SPECIFICATION OF WCMxxxxSE SERIES

FEATURE

1. Low DCR and excellent impedance characteristics.
2. High rated current.
3. Excellent common mode EMI noise suppression.
4. Virtually no distortion of signals.

APPLICATIONS

1. EMI suppression for power line , AC/DC adaptor, larger
electronic equipment, personal computers, peripherals, IoT etc.

ORDERING CODE.
WCM-SCMSO SERIES
  1. Product TypeCode
  2. Product Size Code
  3. IMPEDANCE CODE
  4. TAPING CODE

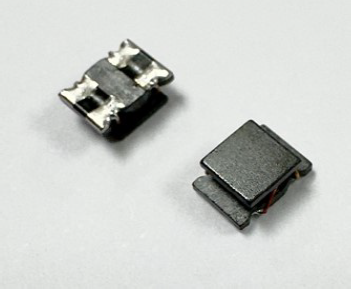

Appearance and Dimensions (mm)
WCM-SCMSO SERIES
WCM-SCMSO SERIES



APPEARANCE & DIMENSIONSUNIT : mm (inch)
SIZE CODEA ±0.30B ±0.30C ±0.15D Ref.E Ref.F Ref.G Ref.abcdSeries Spec.
WCM-5025SCMSO3.605.002.351.251.701.601.001.802.401.200.80WCM-SCMSO SERIES
WCM-5025SCMESO3.605.002.351.251.701.601.001.802.401.200.80WCM-SCMSO SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
