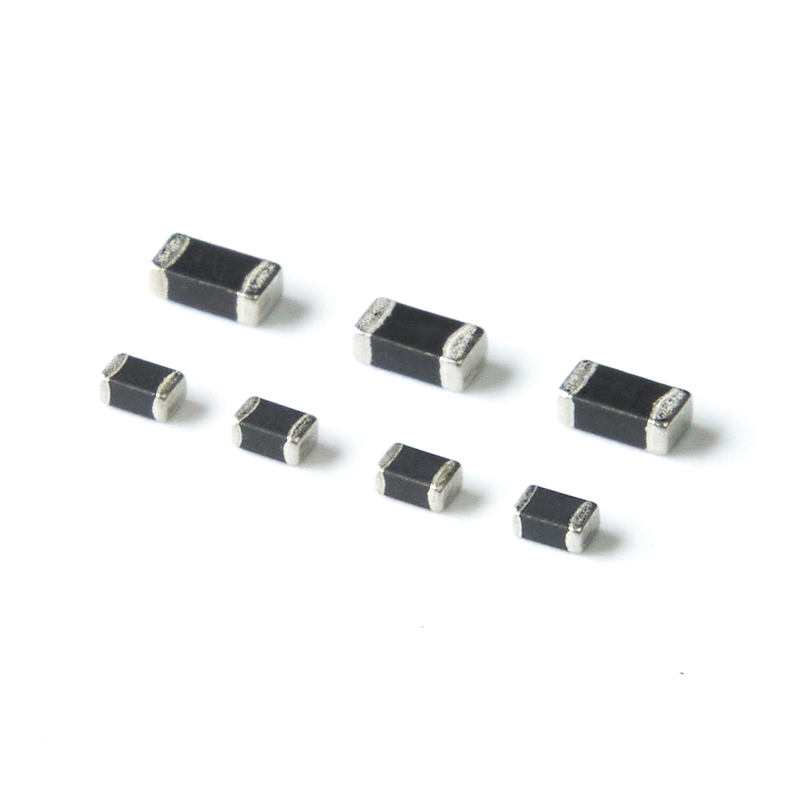

MULTILAYER CHIP INDUCTORS → FLM□ TYPE

APPLICATIONS

1. EMI suppression for various electric equipment by the addition of impedance to the circuit.
   Suitable for all computer related products
2. To compose different LC filter with capacitor to modify signal wave-form ; such as TV out
   in a notebook computer or audio out in a CD-ROM circuit

ORDERING CODE.

1. PRODUCT TYPE CODE
          FLM:Ferrite Chip Inductor Multilayer
             口:RoHS Code
2. SIZE CODE
3. INDUCTANCE CODE
   Example:47N=0.047μH
   R47=0.47μH
   4R7=4.7μH
4. INDUCTANCE TOLERANCE
   (M : ±20%; K±10% )
5. TAPING

SHAPE & DIMENSIONS.

UNIT : mm (inch)

TYPE	A	B	C	D	Series Spec.
FLM□-160808 (0603)	1.60±0.20 (0.063±0.008)	0.80±0.20 (0.031±0.008)	0.80±0.20 (0.031±0.008)	0.30±0.20 (0.012±0.008)
FLM□-201209 (0805)	2.00±0.20 (0.079±0.008)	1.20±0.20 (0.047±0.008)	0.90±0.20 (0.035±0.008)	0.50±0.30 (0.020±0.012)
FLM□-201212 (0805)	2.00±0.20 (0.079±0.008)	1.20±0.20 (0.047±0.008)	1.20±0.20 (0.047±0.008)	0.50±0.30 (0.020±0.012)
FLM□-321611 (1206)	3.20±0.20 (0.126±0.008)	1.60±0.20 (0.063±0.008)	1.10±0.20 (0.043±0.008)	0.50±0.30 (0.020±0.012)

1. Other sizes are available upon request.
2. All the data listed in this catalogue are for reference only; King Core reserves
   the right to alter or revise the specifications without prior notification.
