BSFQ□□□□BNRM SERIES



Applications

SPECIFICATION OF BSFQ□□□□BNRM SERIES

FEATURE
  1. SMT designed ferrite/alloy core with magnetic.
  2. High magnetic shielding construction and acted high performance for EMC/EMI protection.
  3. Low coil resistance with high current application.
  4. Compatible with Pb-free RoHS and AEC-Q200.
APPLICATIONS
  1. Automotive application.
  2. Automotive Grade
ORDERING CODE.
BSFQ□□□□BNRM SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:20%,N:30%)
  4. REEL TAPING

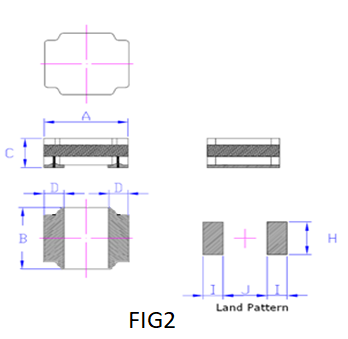

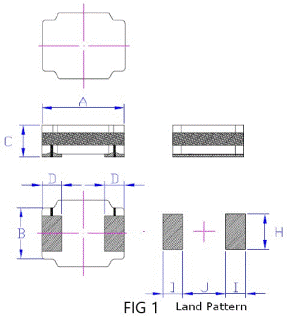

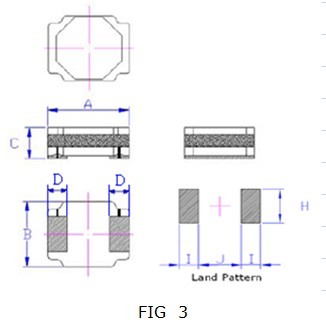

SHAPE & DIMENSIONS(mm)

BSFQ□□□□BNRM SERIESBSFQ□□□□BNRM SERIES

UNIT : mm (inch)

SIZE CODEA
mm
B
mm
C
mm
D
mm
HIJFIGSeries Spec.
BSFQ2010BNRM2.00±0.201.60±0.201.05max0.60±0.201.110.91BSFQ□□□□BNRM SERIES
BSFQ2512BNRM2.50±0.202.10±0.201.25max0.85±0.201.40.950.91BSFQ□□□□BNRM SERIES
BSFQ3015BNRM3.00±0.203.00±0.201.55max0.90±0.202.911.22BSFQ□□□□BNRM SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
