XS SERIES

    Attachment

    Series Specification

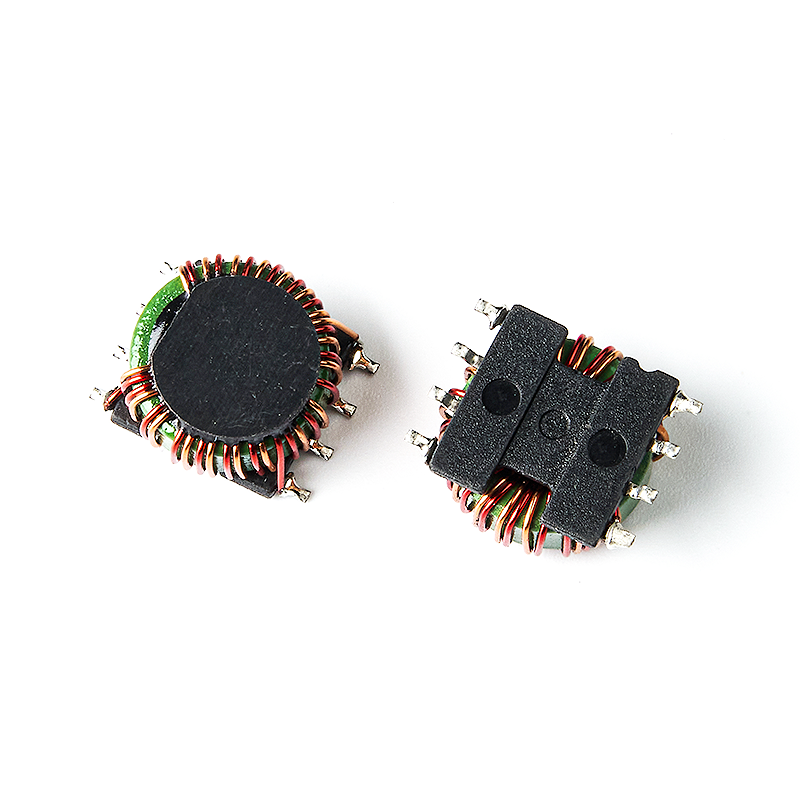

    SMD COMMON MODE CHOKE --> XS TYPE

    FEATURE
    1. High impedance for common mode noise and low impedance for differential mode signal.
    2. Large rated current available.
    3. Wide band or sharp type impedance curve available.
    4. SMD or DIP available.
    APPLICATIONS

    Prevention of common mode noise on signal Lines and power lines for computer related or electronic
    products.

    ORDERING CODE.
    XS SERIES
    1. MATERIAL CODE
    2. CORE TYPE
    3. S : SMD ; C : CAPPED SMD ; D : DIP
    4. ROHS CODE
    5. MAX BASE DIMENSION(mm)
    6. MAX HEIGHT(ABOVE PCB IN mm)
    7. DESIGN CODE
    Appearance and Dimensions (mm)

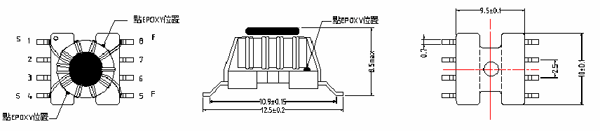

    XS 1208-01 Series
    XS SERIES

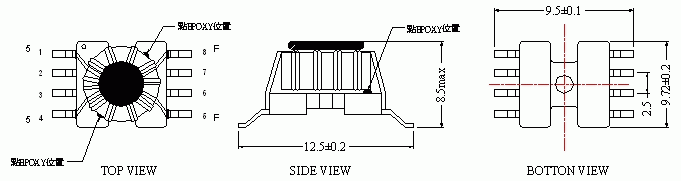

    XS 1208-02,03 Series
    XS SERIES

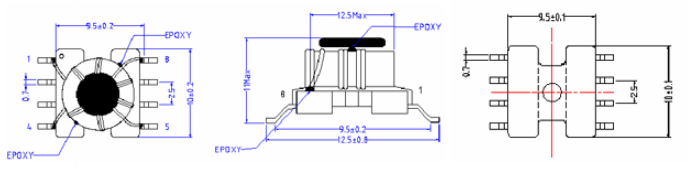

    XS 1211 Series
    XS SERIES



    UNIT : mm (inch)

    ORDERING CODEBASEWINDINGWIRINGIMPEDANCE+/-25%RATED CURRENTRDC(max)
    DXSA1208-01SMD-8P(12.5mm)ψ0.35*12.5TS*21-8;4-5735 OHM/100MHz3500mA0.050 ohm
    IXSA1208-01SMD-8P(12.5mm)ψ0.35*12.5TS*21-8;4-5453 OHM/100MHz2500mA0.050 ohm
    JXSA1208-01SMD-8P(12.5mm)ψ0.35*12.5TS*21-8;4-5434 OHM/100MHz4500mA0.050 ohm
    AXSA1208-02SMD-8P(12.5mm)ψ0.35*18TS*21-8;4-51492min OHM/1MHz2500mA0.080 ohm
    AXSA1208-03SMD-8P(12.5mm)ψ0.3*21TS*21-8;4-51567min OHM/250KHz2000mA0.091 ohm
    IXSA1211-01SMD-8P(12.5mm)ψ0.45*6.5TS*21-8;4-5500 OHM/100MHz3000mA0.100 ohm
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
