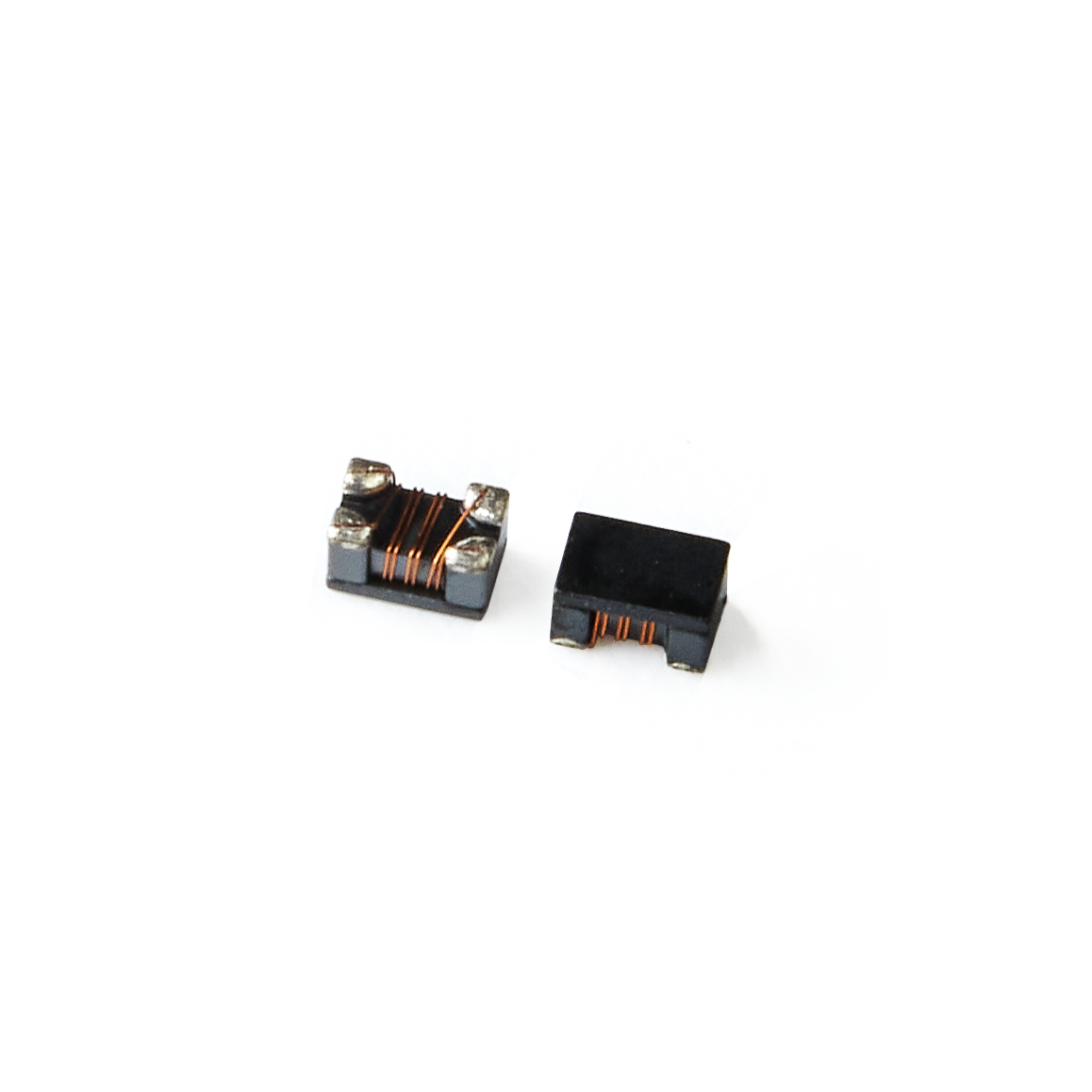

    SMD COMMON MODE CHOKE --> WCM - HDMI SERIES

    FEATURE & APPLICATIONS

    Lowprofile and very small size SMD Design,
    Wound Chip construction with standard 0805 size
    matching lines with a characteristic impedance of 100 Ω, with best EMI suppression effect but least impact to HDMI signal wave.

    ORDERING CODE.
    WCM-HDMI For HDMI
    1. Product TypeCode
    2. Product Size Code
    3. Design Code
    4. Impedance Code
    5. Taping
    Appearance and Dimensions (mm)
    WCM-HDMI For HDMI
    WCM-HDMI For HDMI

    UNIT : mm (inch)

    SIZE CODEABCD1
    TYP    		D2
    TYP    		F
    TYP    		G
    TYP    		H
    TYP    		I
    TYP
    WCM-2012HDMI
    (0805)    		2.00±0.20
    ( 0.079±0.008)    		1.20±0.20
    ( 0.047±0.008)    		1.20±0.20
    ( 0.047±0.008)    		0.45
    (0.018)    		0.40
    (0.016)    		0.40
    (0.016)    		1.20
    (0.047)    		0.80
    (0.031)    		2.60
    (0.102)
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
