WOUND CHIP WIDE BAND CHOKE ( S5H TYPE )
FEATURE AND APPLICATIONS
- Wide band EMI suppression effect
- High Current rating
- Compact and simple design with high reliability
- Very good SMD solution for traditional wide band choke
ORDERING CODE.
- MATERIAL CODE
- PRODUCT TYPE CODE
- PRODUCT SIZE CODE
- WINDING TURNS CODE
- TERMINAL CODE
- TAPING CODE

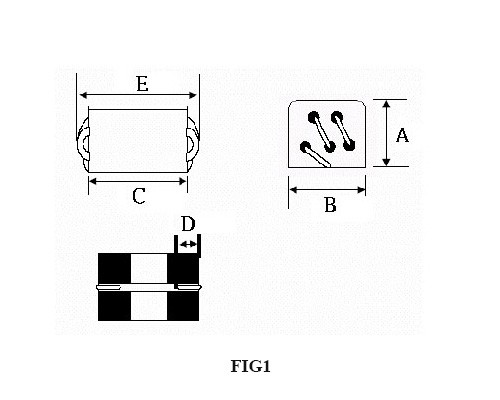

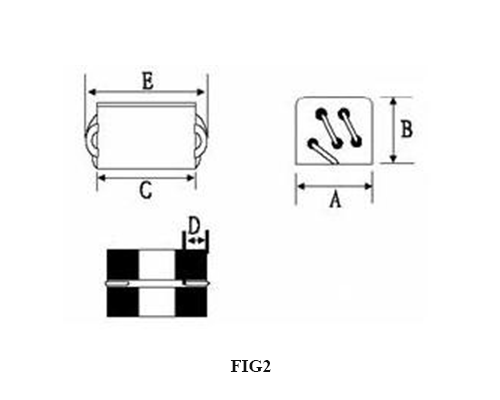

SHAPE
| DIMENSIONS & CHARACTERISTICS | UNIT : mm (inch) | |||||||||
| NO | ORDERING CODE | A | B | C | D | E | F | G | Winding | Fig |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | S5H 5*4.6*5.5-2.5Ts-T | 5.00±0.25 | 5.00max | 5.50±0.30 | 2.00min | 8.0max | - | - | 0.5*2.5Ts | 1 |
| 2 | S5H 5*4.6*5.5-2.5Ts-M-T | 5.00±0.50 | 4.60±0.50 | 5.50±0.50 | 2.00max | 8.0max | - | - | 0.5*2.5Ts | 2 |
| 3 | S5H 5*4.6*8.5-2.5Ts-T | 5.00±0.25 | 5.00max | 8.50±0.30 | 3.50max | 11.00max | - | - | 0.5*2.5Ts | 1 |
| 4 | S5H 5*4.6*8.5-2.5Ts-M-T | 5.00±0.50 | 4.65±0.50 | 8.50±0.50 | 2.0±0.50 | 11.00max | - | - | 0.5*2.5Ts | 2 |
| 5 | S5H 5*4.6*8.5-2.5Ts-M1-T | 5.00±0.50 | 4.65±0.50 | 8.50±0.50 | 2.0min | 11.00max | 3.00±0.50 | 3.00±0.50 | 0.5*2.5Ts | 3 |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
