    SLEEVE CORES ( RH TYPE )

    APPLICATIONS

    The RH type bead cores are mainly produced for the cable wire assemblers and MATV CATV makers.
    * Internal and external computer data and power cables

    ORDERING CODE.
    RH
    1. MATERIAL
    2. PRODUCT CODE
    3. A DIM.
    4. B DIM.
    5. C DIM.

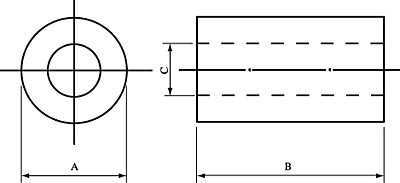

    SHAPE
    RH
    DIMENSIONS & CHARACTERISTICSUNIT : mm (inch)
    NOORDERING CODEABC
    1RH 2.5*4*0.82.50±0.154.00±0.300.80±0.15
    2RH 2.5*7*0.82.50±0.157.00±0.300.80±0.15
    3RH 2.5*12*1.32.50±0.1512.00±0.401.30±0.15
    4RH 3*3*13.00±0.153.00±0.201.00±0.15
    5RH 3*3*1.23.00±0.153.00±0.201.20±0.15
    6RH 3*4*13.00±0.154.00±0.301.00±0.15
    7RH 3*6*13.00±0.156.00±0.301.00±0.15
    8RH 3.4*11.2*1.13.40±0.1511.20±0.401.10±0.15
    9RH 3.5*3.5*0.83.50±0.153.50±0.200.80±0.15
    10RH 3.5*3.5*1.23.50±0.153.50±0.201.20±0.15
    11RH 3.5*3.5*1.73.50±0.153.50±0.201.70±0.15
    12RH 3.5*3.5*1.83.50±0.153.50±0.201.80±0.15
    13RH 3.5*4*13.50±0.154.00±0.301.00±0.15
    14RH 3.5*4*1.23.50±0.154.00±0.301.20±0.15
    15RH 3.5*4*1.33.50±0.154.00±0.301.30±0.15
    16RH 3.5*4*1.53.50±0.154.00±0.301.50±0.15
    17RH 3.5*4.5*0.83.50±0.154.50±0.300.80±0.15
    18RH 3.5*4.7*0.83.50±0.154.70±0.300.80±0.15
    19RH 3.5*5*0.83.50±0.155.00±0.300.80±0.15
    20RH 3.5*5*1.23.50±0.155.00±0.301.20±0.15
    21RH 3.5*5*1.33.50±0.155.00±0.301.30±0.15
    22RH 3.5*5*1.53.50±0.155.00±0.301.50±0.15
    23RH 3.5*5*1.83.50±0.155.00±0.301.80±0.15
    24RH 3.5*6*0.83.50±0.156.00±0.300.80±0.15
    25RH 3.5*6*13.50±0.156.00±0.301.00±0.15
    26RH 3.5*6*1.23.50±0.156.00±0.301.20±0.15
    27RH 3.5*6*1.33.50±0.156.00±0.301.30±0.15
    28RH 3.5*6*1.53.50±0.156.00±0.301.50±0.15
    29RH 3.5*6*1.83.50±0.156.00±0.301.80±0.15
    30RH 3.5*7*1.23.50±0.157.00±0.301.20±0.15
    31RH 3.5*7.5*0.83.50±0.157.50±0.300.80±0.15
    32RH 3.5*8*0.83.50±0.158.00±0.300.80±0.15
    33RH 3.5*8*13.50±0.158.00±0.301.00±0.15
    34RH 3.5*9*0.83.50±0.159.00±0.300.80±0.15
    35RH 3.5*9*1.33.50±0.159.00±0.301.30±0.15
    36RH 3.5*9.5*0.83.50±0.159.50±0.300.80±0.15
    37RH 3.5*14*0.83.50±0.1514.00±0.400.80±0.15
    38RH 4*4*1.54.00±0.204.00±0.301.50±0.15
    39RH 4*4*24.00±0.204.00±0.302.00±0.15
    40RH 4*5*1.54.00±0.205.00±0.301.50±0.15
    41RH 4*5*24.00±0.205.00±0.302.00±0.15
    42RH 4*5.5*1.54.00±0.205.50±0.301.50±0.15
    43RH 4*6*24.00±0.206.00±0.302.00±0.15
    44RH 4*7*24.00±0.207.00±0.302.00±0.15
    45RH 4*8*24.00±0.208.00±0.302.00±0.15
    46RH 4*10*1.54.00±0.2010.00±0.401.50±0.15
    47RH 4*10*24.00±0.2010.00±0.402.00±0.15
    48RH 4*12*24.00±0.2012.00±0.402.00±0.15
    49RH 4*12.5*1.54.00±0.2012.50±0.401.50±0.15
    50RH 4*15*24.00±0.2015.00±0.402.00±0.15
    51RH 4*17*24.00±0.2017.00±0.402.00±0.15
    52RH 4.5*4.8*2.54.50±0.204.80±0.302.50±0.15
    53RH 4.5*7*2.54.50±0.207.00±0.302.50±0.15
    54RH 4.5*12*2.64.50±0.2012.00±0.402.60±0.15
    55RH 4.6*11*24.60±0.2011.00±0.402.00±0.15
    56RH 4.83*6.35*2.294.83±0.206.35±0.302.29±0.15
    57RH 5*5*2.35.00±0.205.00±0.302.30±0.15
    58RH 5*6.2*1.65.00±0.206.20±0.301.60±0.15
    59RH 5*6.35*1.55.00±0.206.35±0.301.50±0.15
    60RH 5*6.35*2.365.00±0.206.35±0.302.36±0.15
    61RH 5*10*2.35.00±0.206.35±0.301.50±0.15
    62RH 5*11*1.55.00±0.2011.00±0.401.50±0.15
    63RH 5*12*2.155.00±0.2012.00±0.402.15±0.15
    64RH 5*18*2.155.00±0.2018.00±0.402.15±0.15
    65RH 5*20*1.55.00±0.2020.00±0.501.50±0.15
    66RH 5.7*8*1.55.70±0.208.00±0.301.50±0.15
    67RH 6*10*36.00±0.2010.00±0.403.00±0.20
    68RH 6*10*46.00±0.2010.00±0.404.00±0.20
    69RH 6*12.8*46.00±0.2012.80±0.404.00±0.20
    70RH 6*18*3.156.00±0.2018.00±0.403.15±0.20
    71RH 6*25*36.00±0.2025.00±0.603.00±0.20
    72RH 6.35*12.7*3.36.35±0.2012.70±0.403.30±0.20
    73RH 6.35*15.8*3.36.35±0.2015.80±0.403.30±0.20
    74RH 6.5*10*4.36.50±0.2010.00±0.404.30±0.20
    75RH 6.5*11*4.36.50±0.2011.00±0.404.30±0.20
    76RH 7.5*7.5*2.47.50±0.207.50±0.302.40±0.15
    77RH 7.9*10*37.90±0.2010.00±0.403.00±0.20
    78RH 7.9*12.8*47.90±0.2012.80±0.404.00±0.20
    79RH 7.9*19*37.90±0.2019.00±0.403.00±0.20
    80RH 8*9*68.00±0.209.00±0.306.00±0.30
    81RH 8*9.8*68.00±0.209.80±0.306.00±0.30
    82RH 8*10*48.00±0.2010.00±0.404.00±0.20
    83RH 8*10.06*3.188.00±0.2010.06±0.403.18±0.20
    84RH 8*12*68.00±0.2012.00±0.406.00±0.30
    85RH 8*16*58.00±0.2016.00±0.405.00±0.25
    86RH 8*20*58.00±0.2020.00±0.505.00±0.25
    87RH 9*10*4.59.00±0.3010.00±0.404.50±0.20
    88RH 9*16*59.00±0.3016.00±0.405.00±0.25
    89RH 9.3*9.5*4.59.30±0.309.50±0.304.50±0.20
    90RH 9.3*11*5.89.30±0.3011.00±0.405.80±0.25
    91RH 9.5*9.5*4.89.50±0.309.50±0.304.80±0.20
    92RH 9.5*9.5*5.29.50±0.309.50±0.305.20±0.25
    93RH 9.5*10*5.29.50±0.3010.00±0.405.20±0.25
    94RH 9.5*10*5.89.50±0.3010.00±0.405.80±0.25
    95RH 9.5*10.4*59.50±0.3010.40±0.405.00±0.25
    96RH 9.5*12.7*4.89.50±0.3012.70±0.404.80±0.20
    97RH 9.5*14.5*59.50±0.3014.50±0.405.00±0.25
    98RH 9.5*15.88*59.50±0.3015.88±0.405.00±0.25
    99RH 9.5*16*59.50±0.3016.00±0.405.00±0.25
    100RH 9.5*19*59.50±0.3019.00±0.405.00±0.25
    101RH 9.5*19.5*59.50±0.3019.50±0.405.00±0.25
    102RH 9.52*15.88*5.089.52±0.3015.88±0.405.08±0.25
    103RH 9.8*11.4*0.89.80±0.3011.40±0.400.80±0.15
    104RH 9.8*13.5*6.79.80±0.3013.50±0.406.70±0.30
    105RH 9.8*19.05*6.79.80±0.3019.05±0.406.70±0.30
    106RH 9.8*25*3.89.80±0.3025.00±0.603.80±0.30
    107RH 10*10*510.00±0.3010.00±0.405.00±0.25
    108RH 10*10*610.00±0.3010.00±0.406.00±0.30
    109RH 10*10*710.00±0.3010.00±0.407.00±0.30
    110RH 10*14*610.00±0.3014.00±0.406.00±0.30
    111RH 10.5*20*5.510.50±0.3020.00±0.505.50±0.25
    112RH 10.5*25*5.510.50±0.3025.00±0.605.50±0.25
    113RH 11*16*511.00±0.3016.00±0.405.00±0.25
    114RH 11*18.5*511.00±0.3018.50±0.405.00±0.25
    115RH 11*20*511.00±0.3020.00±0.505.00±0.25
    116RH 11*25*511.00±0.3025.00±0.605.00±0.25
    117RH 11.5*18.5*511.50±0.3018.50±0.405.00±0.25
    118RH 11.5*20*4.311.50±0.3020.00±0.504.30±0.20
    119RH 11.5*26*4.311.50±0.3026.00±0.604.30±0.20
    120RH 11.8*15*7.311.80±0.3015.00±0.407.30±0.30
    121RH 12*12*712.00±0.3012.00±0.407.00±0.30
    122RH 12*12*8.512.00±0.3012.00±0.408.50±0.30
    123RH 12*15*5.612.00±0.3015.00±0.405.60±0.25
    124RH 12*15*712.00±0.3015.00±0.407.00±0.30
    125RH 12*15*8.512.00±0.3015.00±0.408.50±0.30
    126RH 12*20*5.612.00±0.3020.00±0.505.60±0.25
    127RH 12*20*7.312.00±0.3020.00±0.507.30±0.30
    128RH 12*30*5.612.00±0.3030.00±0.705.60±0.25
    129RH 12.2*23*7.912.20±0.3023.00±0.507.90±0.30
    130RH 12.3*20*712.30±0.3020.00±0.507.00±0.30
    131RH 12.32*25.4*4.8812.32±0.3025.40±0.604.88±0.20
    132RH 12.5*12.5*812.50±0.3012.50±0.408.00±0.30
    133RH 12.5*15*5.212.50±0.3015.00±0.405.20±0.25
    134RH 12.7*12.7*7.912.70±0.3012.70±0.407.90±0.30
    135RH 14*15*914.00±0.4015.00±0.409.00±0.30
    136RH 14.2*15*6.3514.20±0.4015.00±0.406.35±0.30
    137RH 14.2*15*714.20±0.4015.00±0.407.00±0.30
    138RH 14.2*15*814.20±0.4015.00±0.408.00±0.30
    139RH 14.2*18*6.3514.20±0.4018.00±0.406.35±0.30
    140RH 14.2*23.5*714.20±0.4023.50±0.507.00±0.30
    141RH 14.2*28.5*6.3514.20±0.4028.50±0.606.35±0.30
    142RH 14.2*28.5*714.20±0.4028.50±0.607.00±0.30
    143RH 14.2*28.5*814.20±0.4028.50±0.608.00±0.30
    144RH 14.99*19*6.9914.99±0.4019.00±0.406.99±0.30
    145RH 14.99*27.94*6.9914.99±0.4027.94±0.606.99±0.30
    146RH 15.2*28.5*10.215.20±0.4028.50±0.6010.20±0.40
    147RH 15.25*17*915.25±0.4017.00±0.409.00±0.30
    148RH 15.25*28*815.25±0.4028.00±0.608.00±0.30
    149RH 15.65*28.57*6.9915.65±0.4028.57±0.606.99±0.30
    150RH 15.8*16*7.915.80±0.4016.00±0.407.90±0.30
    151RH 15.88*28.57*7.8715.88±0.4028.57±0.607.87±0.30
    152RH 16*16*816.00±0.4016.00±0.408.00±0.30
    153RH 16*17*916.00±0.4017.00±0.409.00±0.30
    154RH 16*17.5*4.316.00±0.4017.50±0.404.30±0.20
    155RH 16*20*716.00±0.4020.00±0.507.00±0.30
    156RH 16*20*916.00±0.4020.00±0.509.00±0.30
    157RH 16*28*716.00±0.4028.00±0.607.00±0.30
    158RH 16*28*916.00±0.4028.00±0.609.00±0.30
    159RH 16*28*1016.00±0.4028.00±0.6010.00±0.40
    160RH 16*28.5*916.00±0.4028.50±0.609.00±0.30
    161RH 16.25*50.8*7.9-0.116.25±0.4050.80±1.007.90±0.30
    162RH 16.25x50.8x9-0116.25±0.4050.80±1.009.00±0.30
    163RH 17.07*25.4*8.7617.07±0.4025.40±0.608.76±0.30
    164RH 17.5*23.5*9.517.50±0.4023.50±0.509.50±0.30
    165RH 17.5*28.5*817.50±0.4028.50±0.608.00±0.30
    166RH 17.5*28.5*8.317.50±0.4028.50±0.608.30±0.30
    167RH 17.5*28.5*9.517.50±0.4028.50±0.609.50±0.30
    168RH 17.5*28.5*10.717.50±0.4028.50±0.6010.70±0.40
    169RH 17.5*35*9.517.50±0.4035.00±0.809.50±0.30
    170RH 18*18*1018.00±0.5018.00±0.4010.00±0.40
    171RH 18*28*1018.00±0.5028.00±0.6010.00±0.40
    172RH 18*29*1018.00±0.5029.00±0.6010.00±0.40
    173RH 18.67*25*10.1618.67±0.5025.00±0.6010.16±0.40
    174RH 18.67*28.57*10.1618.67±0.5028.57±0.6010.16±0.40
    175RH 19*29*1319.00±0.5029.00±0.6013.00±0.40
    176RH 19*31.5*5.819.00±0.5031.50±0.705.80±0.25
    177RH 19*35*5.819.00±0.5035.00±0.805.80±0.25
    178RH 19*35*6.319.00±0.5035.00±0.806.30±0.30
    179RH 19*50.8*10.15-0.119.00±0.5050.80±1.0010.15+0.6(-0.2)
    180RH 20*28.25*14.520.00±0.6028.25±0.6014.50±0.50
    181RH 25.91*28.57*12.8325.91±0.6028.57±0.6012.83±0.40
    182RH 28*28*1628.00±0.6028.00±0.6016.00±0.50
    183RH 28.5*28.57*13.7728.50±0.6028.57±0.6013.77±0.40
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
