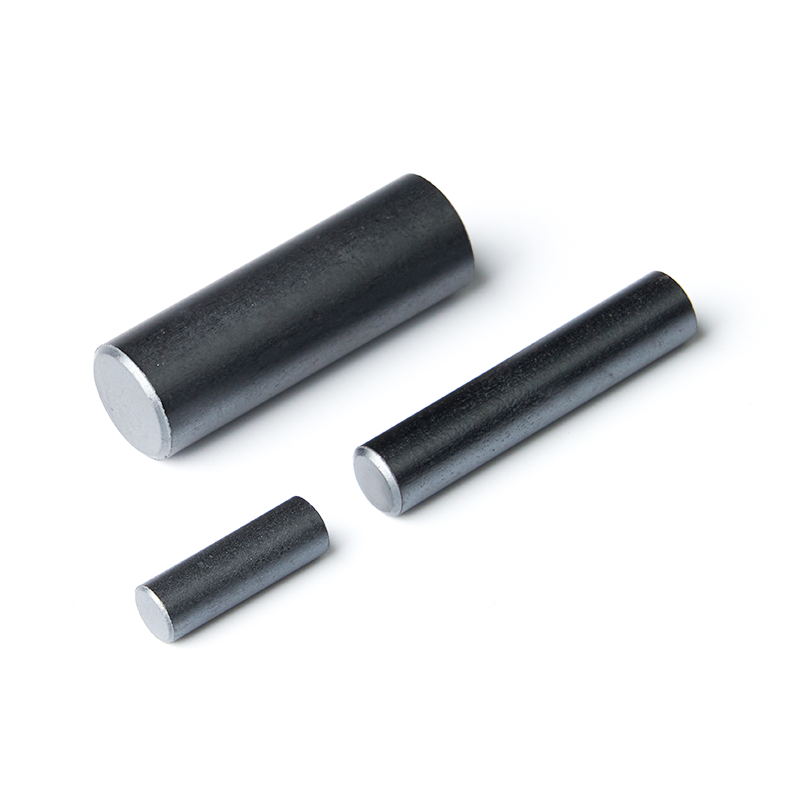

ROD CORES ( R TYPE )
APPLICATIONS
The R type rod cores are mainly used as the coils which do not require adjustments as well as magnetic shield
ORDERING CODE.
- MATERIAL
- PRODUCT CODE
- A DIM.
- B DIM.
SHAPE
| DIMENSIONS UNIT : mm (inch) | |||||||
| NO | ORDERING CODE | A | B | NO | ORDERING CODE | A | B |
|---|---|---|---|---|---|---|---|
| 1 | R 2*9 | 2.00±0.10 | 9.00±0.30 | 26 | R 6*8 | 6.00±0.15 | 8.00±0.30 |
| 2 | R 2*10 | 2.00±0.10 | 10.00±0.30 | 27 | R 6*10 | 6.00±0.15 | 10.00±0.30 |
| 3 | R 2.5*5 | 2.50±0.15 | 5.00±0.30 | 28 | R 6*15 | 6.00±0.15 | 15.00±0.40 |
| 4 | R 2.5*11 | 2.50±0.15 | 11.00±0.40 | 29 | R 6*18 | 6.00±0.15 | 18.00±0.30 |
| 5 | R 2.5*18 | 2.50±0.15 | 18.00±0.40 | 30 | R 6*20 | 6.00±0.15 | 20.00±0.40 |
| 6 | R 3*10 | 3.00±0.15 | 10.00±0.30 | 31 | R 6*25 | 6.00±0.15 | 25.00±0.50 |
| 7 | R 3*12.2 | 3.00±0.15 | 12.20±0.30 | 32 | R 6*30 | 6.00±0.15 | 30.00±0.50 |
| 8 | R 3*15 | 3.00±0.15 | 15.00±0.40 | 33 | R 6*31.75 | 6.00±0.15 | 31.75±0.70 |
| 9 | R 3*22 | 3.00±0.15 | 22.00±0.40 | 34 | R 6.25*22 | 6.25±0.15 | 22.00±0.40 |
| 10 | R 3.5*10 | 3.50±0.15 | 10.00±0.30 | 35 | R 6.35*19 | 6.35±0.15 | 19.00±0.40 |
| 11 | R 4*10 | 4.00±0.15 | 10.00±0.30 | 36 | R 6.35*25.4 | 6.35±0.15 | 25.40±0.50 |
| 12 | R 4*12 | 4.00±0.15 | 12.00±0.30 | 37 | R 6.35*31.75 | 6.35±0.15 | 31.75±0.70 |
| 13 | R 4*14 | 4.00±0.15 | 14.00±0.40 | 38 | R 6.35*35 | 6.35±0.15 | 35.00±0.80 |
| 14 | R 4*16 | 4.00±0.15 | 16.00±0.40 | 39 | R 8*20 | 8.00±0.20 | 20.00±0.40 |
| 15 | R 4*18.3 | 4.00±0.15 | 18.30±0.40 | 40 | R 8*25 | 8.00±0.20 | 25.00±0.50 |
| 16 | R 4*20 | 4.00±0.15 | 20.00±0.40 | 41 | R 8*30 | 8.00±0.20 | 30.00±0.70 |
| 17 | R 4*25 | 4.00±0.15 | 25.00±0.40 | 42 | R 8*32 | 8.00±0.20 | 32.00±0.80 |
| 18 | R 4.4*20 | 4.40±0.15 | 20.00±0.40 | 43 | R 10*16 | 10.00±0.20 | 16.00±0.40 |
| 19 | R 5*15 | 5.00±0.15 | 15.00±0.40 | 44 | R 10*20 | 10.00±0.20 | 20.00±0.40 |
| 20 | R 5*18 | 5.00±0.15 | 18.00±0.40 | 45 | R 10*25 | 10.00±0.20 | 25.00±0.50 |
| 21 | R 5*19.5 | 5.00±0.15 | 19.50±0.40 | 46 | R 10*30 | 10.00±0.20 | 30.00±0.70 |
| 22 | R 5*20 | 5.00±0.15 | 20.00±0.40 | 47 | R 10*32 | 10.00±0.20 | 32.00±0.70 |
| 23 | R 5*25 | 5.00±0.15 | 25.00±0.40 | 48 | R 10*35 | 10.00±0.20 | 35.00±0.80 |
| 24 | R 5*30 | 5.00±0.15 | 30.00±0.50 | 49 | R 10*40 | 10.00±0.20 | 40.00±0.80 |
| 25 | R 5.5*12 | 5.50±0.15 | 12.00±0.30 | ||||
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
