SPECIFICATION OF KCF & FH SERIES
APPLICATIONS

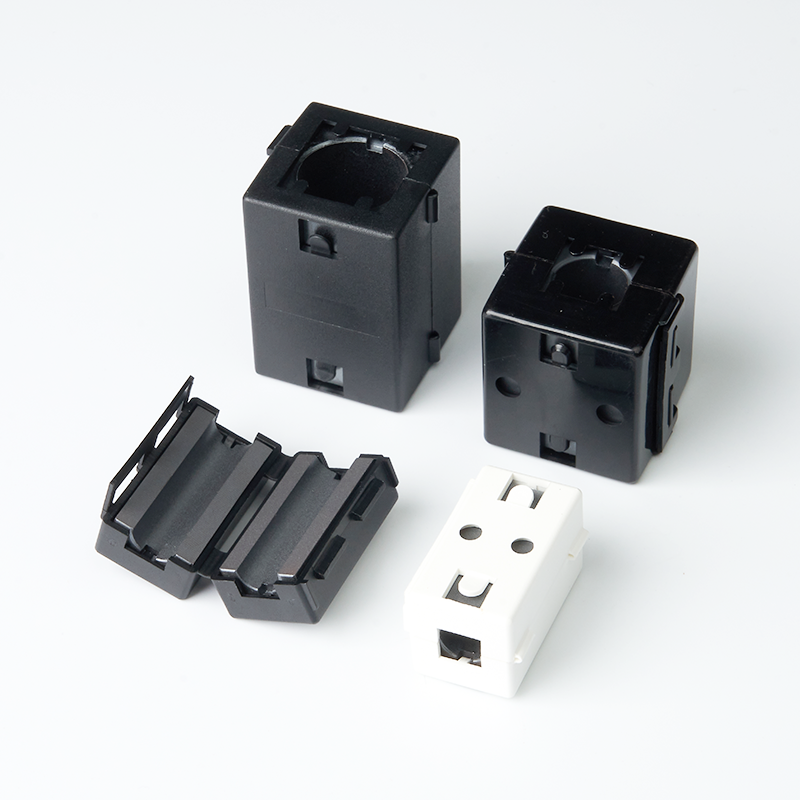

Enclosures for channel-type EMI suppressor snaps
* Internal and external power cables
* Internal cables between PC boards and data connectors
ORDERING CODE.
- MATERIAL
- PRODUCT CODE
- A DIM.
- B DIM.
- C DIM.
ORDERING CODE.
- PRODUCT CODE
- SIZE CODE
- PLASTIC CLAMPS
SHAPE
FIG 1
FIG 2
FIG 3
FIG 4
| DIMENSIONS & CHARACTERISTICS | UNIT : mm (inch) | ||||||
| NO | ORDERING CODE | A | B | C | D | Applicable cable(max) | Fig |
|---|---|---|---|---|---|---|---|
| 1 | FH 5*11*2.5 | 5.00±0.20 | 10.00±0.40 | 2.50±0.25 | 2.50±0.20 | 2.5 | 3 |
| 2 | FH 5*11*3 | 5.00±0.20 | 11.00±0.40 | 3.00±0.20 | 2.50±0.20 | 3 | 3 |
| 3 | FH 6*10*3 | 6.00±0.20 | 10.00±0.40 | 3.00±0.20 | 3.00±0.20 | 3 | 3 |
| 4 | FH 8*10*4 | 8.00±0.20 | 10.00±0.40 | 4.00±0.20 | 4.00±0.20 | 4 | 3 |
| 5 | FH 10*20*5(KCF-50) | 10.00±0.30 | 20.00±0.40 | 5.00±0.20 | 5.15±0.20 | 5 | 2 |
| 6 | FH 15*29.4*6.5(KCF-65) | 15.00±0.30 | 29.40±0.30 | 6.50±0.25 | 8.05±0.20 | 6.5 | 2 |
| 7 | FH 15*29.4*8(KCF-80) | 15.00±0.25 | 29.40±0.30 | 8.00±0.30 | 8.05±0.20 | 8 | 2 |
| 8 | FH 18.67*29.4*10.15(KCF-100) | 18.67±0.50 | 29.40±0.30 | 10.15±0.25 | 9.85±0.20 | 10 | 2 |
| 9 | FH 25.9*29.4*13.05(KCF-130) | 25.90±0.50 | 29.40±0.30 | 13.05±0.25 | 13.30±0.20 | 13 | 2 |
| 10 | KCF-50 | 15.00±1.00 | 14.00±1.00 | 6.00±1.00 | 23.00±1.00 | 5 | 1 |
| 11 | KCF-65 | 20.50±1.00 | 20.00±1.00 | 7.50±1.00 | 33.00±1.00 | 6.5 | 1 |
| 12 | KCF-80 | 20.50±1.00 | 20.00±1.00 | 7.50±1.00 | 33.00±1.00 | 8 | 4 |
| 13 | KCF-100 | 25.50±1.00 | 23.50±1.00 | 11.50±1.00 | 32.50±1.00 | 10 | 1 |
| 14 | KCF-130 | 31.50±1.00 | 31.00±1.00 | 14.00±1.00 | 32.50±1.00 | 13 | 1 |
| 15 | KCF-190 | 42.00±1.00 | 29.20±1.00 | 29.40±1.00 | 19.00±1.00 | 19 | 5 |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
