K15 FT( For Wireless Charging)
SPECIFICATION OF K15 FT SERIES FOR WIRELESS CHARGING
FEATURES

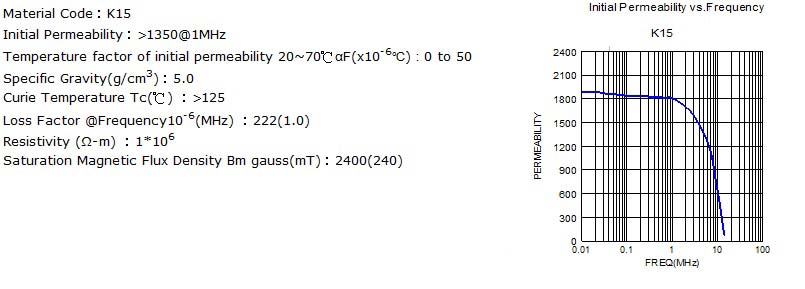

K15 FT is a thin sintered ferrite sheet with relatively high μ' (>1350) and low μ'' at 100-200KHz. It has several advantages as follows:
- Improves charging efficiency of wireless charger
- Prevent battery heating and circulating current in metallic parts.
- Prevent devices or other objects from being interfered by magnetic field.
APPLICATIONS
Shielding component for Tx & Rx wireless charging coils.
ORDERING CODE.
- MATERIAL
- PRODUCT CODE
- A DIM.
- B DIM.
- C DIM.
SHAPE
| DIMENSIONS & CHARACTERISTICS UNIT : mm (inch) | ||||
| NO | ORDERING CODE | A | B | C |
|---|---|---|---|---|
| 1 | FT 50*0.35*50 | 50.00±1.00 | 0.35±0.10 | 50.00±1.00 |
| 2 | FT 50*0.5*50 | 50.00±1.00 | 0.50±0.10 | 50.00±1.00 |
| 3 | FT 50*0.8*50 | 50.00±1.00 | 0.80±0.10 | 50.00±1.00 |
| 4 | FT 50*1.0*50 | 50.00±1.00 | 1.00±0.10 | 50.00±1.00 |
| 5 | FT 50*1.5*50 | 50.00±1.00 | 1.50±0.20 | 50.00±1.00 |
| 6 | FT 50*2.0*50 | 50.00±1.00 | 2.00±0.20 | 50.00±1.00 |
| 7 | FT 50*0.35*60 | 50.00±1.00 | 0.35±0.10 | 60.00±1.00 |
| 8 | FT 50*0.5*60 | 50.00±1.00 | 0.50±0.10 | 60.00±1.00 |
| 9 | FT 50*0.8*60 | 50.00±1.00 | 0.80±0.10 | 60.00±1.00 |
| 10 | FT 50*1.0*60 | 50.00±1.00 | 1.00±0.10 | 60.00±1.00 |
| 11 | FT 50*1.5*60 | 50.00±1.00 | 1.50±0.20 | 60.00±1.00 |
| 12 | FT 50*2.0*60 | 50.00±1.00 | 2.00±0.20 | 60.00±1.00 |
| 13 | FT 53*0.35*53 | 53.00±1.00 | 0.35±0.10 | 53.00±1.00 |
| 14 | FT 53*0.5*53 | 53.00±1.00 | 0.50±0.10 | 53.00±1.00 |
| 15 | FT 53*0.8*53 | 53.00±1.00 | 0.80±0.10 | 53.00±1.00 |
| 16 | FT 53*1.0*53 | 53.00±1.00 | 1.00±0.10 | 53.00±1.00 |
| 17 | FT 53*1.5*53 | 53.00±1.00 | 1.50±0.20 | 53.00±1.00 |
| 18 | FT 53*2.0*53 | 53.00±1.00 | 2.00±0.20 | 53.00±1.00 |
| 19 | FT 100*0.5*100 | 100.00±3.00 | 0.50±0.10 | 100.00±3.00 |
| 20 | FT 100*1.0*100 | 100.00±3.00 | 1.00±0.10 | 100.00±3.00 |
| 21 | FT 100*1.5*100 | 100.00±3.00 | 1.50±0.20 | 100.00±3.00 |
| 22 | FT 108*0.5*108 | 108.00±5.00 | 0.50±0.08 | 108.00±5.00 |
| 23 | FT 108*1.0*108 | 108.00±5.00 | 1.00±0.20 | 108.00±5.00 |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
