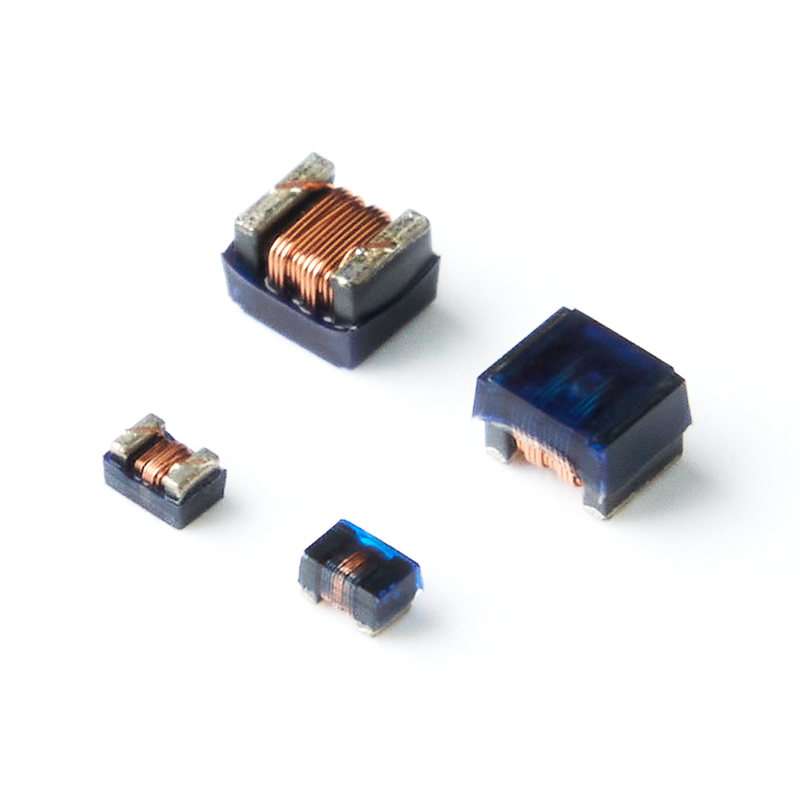

    WOUND CHIP INDUCTORS /FLC□□□□□□NLCL : High Current SERIES

    FEATURES
    1. Very strong solderability by soldering flow and soldering iron.
    2. Highly accurate dimensions;can be mounted automatically.
    3. Terminals are highly resistant to pulling force.
    4. Highly resistant to mechanical shock and pressure.
    5. Highly reliable in environments of sudden temperature change and humidity . Super Q characteristics.
    APPLICATIONS
    1. MMicrotelevisions , Liquid Crystal Display, video camera , portable VCRs , car radio , car stereo , thin tape radio , television tuners , mobile telephone, radio and other electronic devices.
    2. Modem , OA products , TV sets , VCR , Etc.
    ORDERING CODE.
    FLCˍˍNLCL High Current Series
    1. PRODUCT TYPE CODE AND SIZE CODE
    2. INDUCTANCE
    3. INDUCTANCE TOLERANCE( J : ±5%, K : ±10%, M : ±20%, N : ±30%)
    4. A口口 means HIGH CURRENT RATING
      Example：A03 means 300mA, A13 means 1300mA
    5. REEL TAPING

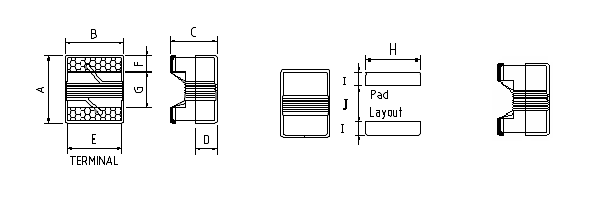

    SHAPE & DIMENSIONS.
    FLCˍˍNLCL High Current Series
    TERMINAL WRAPAROUND：

    FLC160808NLCL：Approx. 0.008"/0.20mm BOTH ENDS
    FLC201212NLCL：Approx. 0.015"/0.38mm BOTH ENDS
    FLC252018NLCL：Approx. 0.015"/0.38mm BOTH ENDS

    UNIT : mm (inch)

    SIZE CODEA
    Max.    		B
    Max.    		C
    Max.    		D
    Ref.    		EFGHIJSeries Spec.
    FLC160808NLCL
    (0603)    		1.80
    (0.071)    		1.22
    (0.048)    		1.07
    (0.042)    		0.38
    (0.015)    		0.90
    (0.035)    		0.31
    (0.012)    		0.93
    (0.037)    		1.02
    (0.040)    		0.64
    (0.025)    		0.64
    (0.025)    		FLCˍˍNLCL High Current Series
    FLC201212NLCL
    (0805)    		2.35
    (0.093)    		1.78
    (0.070)    		1.60
    (0.063)    		0.51
    (0.020)    		1.27
    (0.050)    		0.51
    (0.020)    		1.02
    (0.040)    		1.78
    (0.070)    		1.02
    (0.040)    		0.76
    (0.030)    		FLCˍˍNLCL High Current Series
    FLC252018NLCL
    (1008)    		2.92
    (0.115)    		2.79
    (0.110)    		2.23
    (0.088)    		0.51
    (0.020)    		2.03
    (0.080)    		0.51
    (0.020)    		1.52
    (0.060)    		2.54
    (0.100)    		1.02
    (0.040)    		1.27
    (0.050)    		FLCˍˍNLCL High Current Series
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
