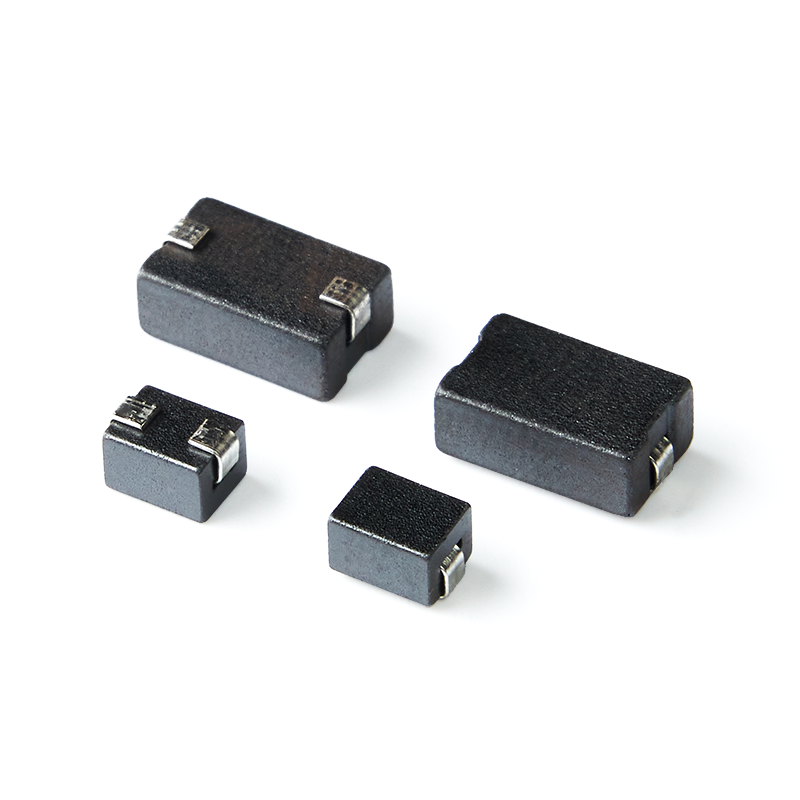

FBCA For DC Power Line
SPECIFICATION OF FBCA SERIES
FEATURES
Use flat wire in itand could endure higher current(6Amps).
It is mounted in the boards with surface mounting equipment.
APPLICATIONS
- Computer products. (Mother board , Hard Disk , TV card..Etc.)
- Communication products. (like : PAGER , Cordless Phone..Etc.)
- Modem , OA products , power supplier..Etc.
- Countermeasures for complying with CE ﹑ FCC﹑ VDE or VCCl radialiated emissions.
ORDERING CODE.
- PRODUCT CODE
- MATERIAL CODE
- SIZE CODE
- DESIGN CODE
- TAPING.
SHAPE & DIMENSIONS.
UNIT : mm (inch)
Ordering Code | A | B | C | D | RDC | IMPEDANCE(Ω) | IDC | FIG | |
|---|---|---|---|---|---|---|---|---|---|
| 25MHz | 100MHz | ||||||||
| FBCA-K17-322330-L1-T01 | 3.08±0.20 | 2.90±0.2 | 2.20±0.15 | 0.80±0.30 | 0.6 | 24 | 40 | 21000 | 1 |
| FBCA-K5B-302340-L1-T | 4.50±0.40 | 3.00±0.20 | 2.3+0(-0.4) | 1.50±0.50 | 4 | 23 | 37 | 6000 | 1 |
| FBCA-K5B-302540-L-T | 3.00±0.20 | 1.45±0.10 | 4.00±0.25 | 2.55±0.15 | 4 | 29 | 47 | 6000 | 2 |
| FBCA-K5B-302540-L1-T | 4.50±0.40 | 3.00±0.20 | 2.60±0.25 | 1.50±0.15 | 4 | 29 | 46 | 6000 | 1 |
| FBCA-K5B-302585-L-T | 3.00±0.20 | 1.45±0.10 | 8.50±0.30 | 2.55±0.15 | 6 | 60 | 90 | 6000 | 2 |
| FBCA-K5B-302585-L1-T | 3.00±0.30 | 1.50±0.50 | 8.50±0.40 | 2.50±0.30 | 6 | 56 | 84 | 6000 | 3 |
| FBCA-K5B-473078-L-T | 4.75±0.20 | 1.45±0.10 | 7.80±0.30 | 3.00±0.15 | 6 | 66 | 108 | 6000 | 2 |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
