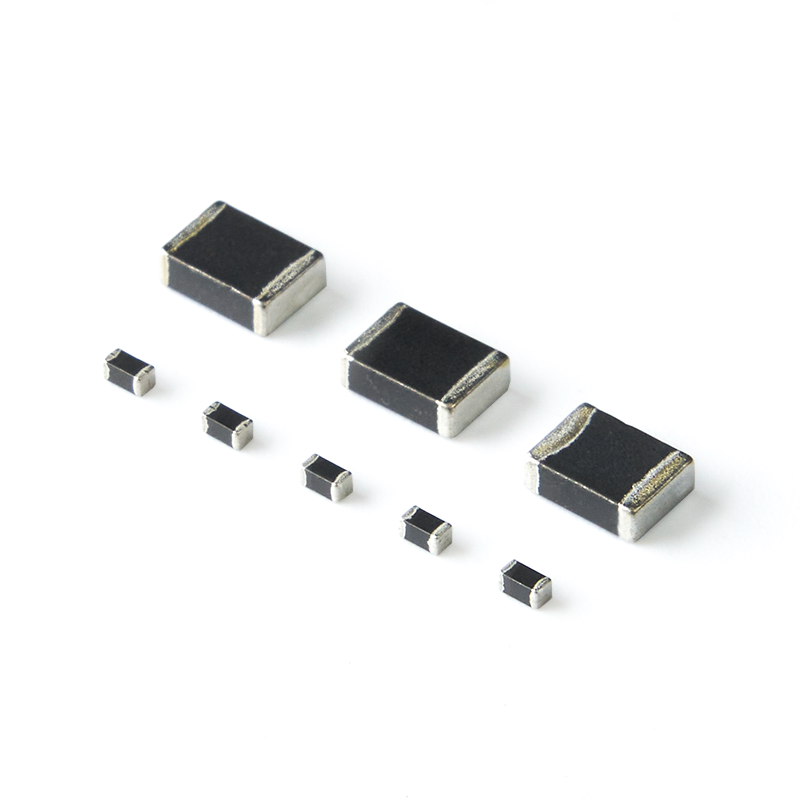

    MULTILAYER CHIP INDUCTORS FLMA-IP SERIES

    APPLICATIONS
    1. Effective EMI suppression component.
    2. Closed magnetic circuit to avoid crosstalk.
    3. Shapes and dimensions follow E.I.A. spec.
    4. Excellent solder ability and heat resistance.
    5. Reliability test meet AEC-Q200.
    6. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
    7. Low DC resistance structure to reduce power consumption.
    ORDERING CODE.
    FBAQ-A-SERIES
    1. PRODUCT TYPE CODE
      FBAQ : Ferrite Bead Multilayer Automotive
      □ : RoHS Code
    2. DESIGN CODE
      Type : 11
    3. SIZE CODE
      See Following Table
    4. IMPEDANCE VALUE CODE
      Example : 121 = 120Ω, 280 = 28Ω
    5. A□□ MEANS HIGH CURRENT RATING
      Example:
      A10 means 1000mA
      A08 means 800mA
    6. TAPING CODE
    SHAPE & DIMENSIONS.
    FBAQ-A-SERIES

    UNIT : mm (inch)

    TYPEABCD
    FBAQ-11-160808(0603)1.60±0.20
    (0.063±0.008)    		0.80±0.20
    (0.031±0.008)    		0.80±0.20
    (0.031±0.008)    		0.30±0.20
    (0.012~0.008)
    FBAQ-11-201209(0805)2.00±0.20
    (0.079±0.008)    		1.20±0.20
    (0.047±0.008)    		0.90±0.20
    (0.035±0.008)    		0.50±0.30
    (0.020~0.012)
    FBAQ-11-321611(1206)3.20±0.20
    (0.126±0.008)    		1.60±0.20
    (0.063±0.008)    		1.10±0.20
    (0.043±0.008)    		0.50±0.30
    (0.020~0.012)
    FBAQ-11-453215(1812)4.50±0.20
    (0.177±0.008)    		3.20±0.20
    (0.126±0.008)    		1.50±0.20
    (0.059±0.008)    		0.50±0.30
    (0.020~0.012)
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
