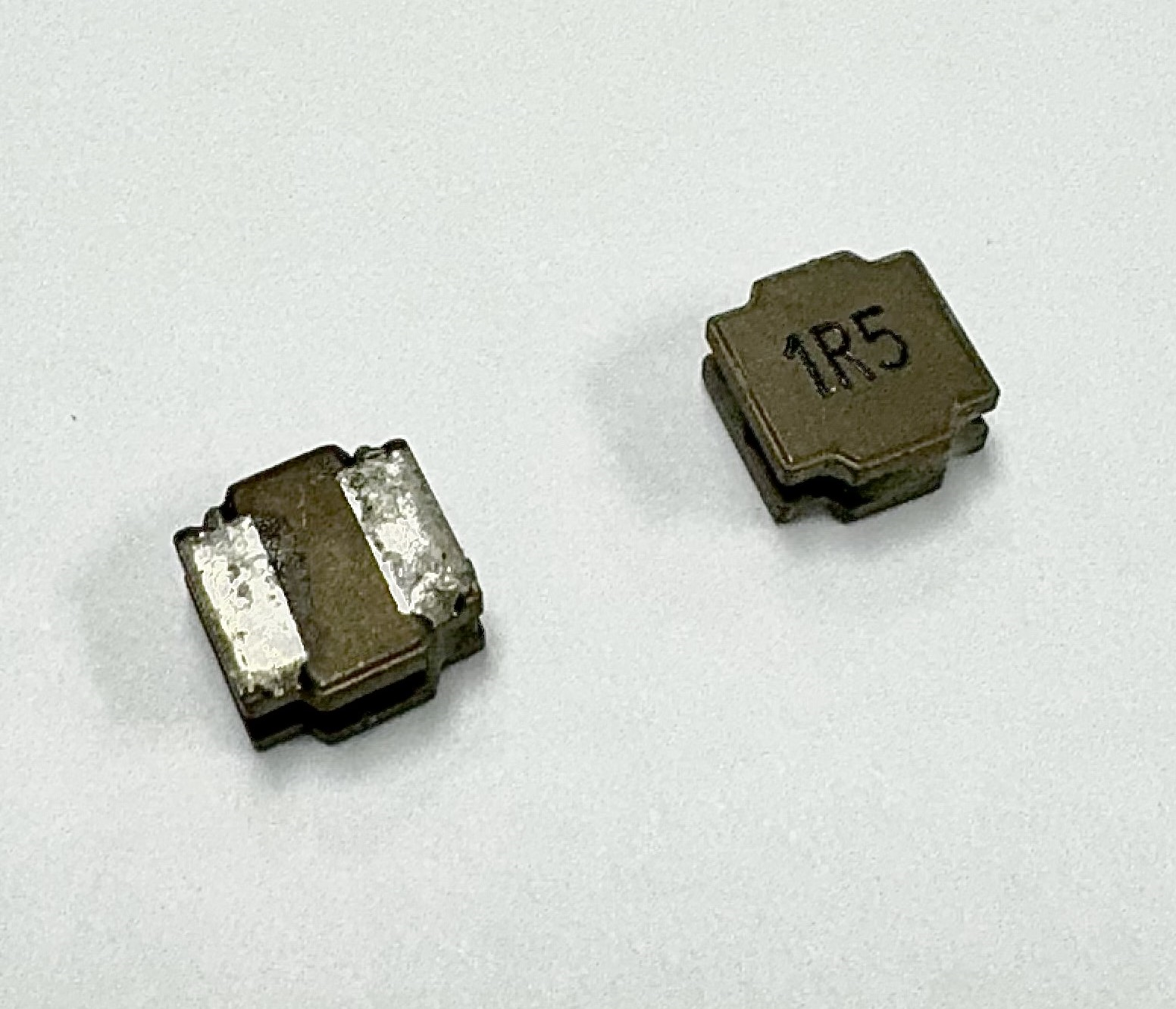

BSF□□□□BNRMX


SPECIFICATION OF BSF□□□□BNRMX SERIES

FEATURE
  1. Low profile construction and miniature size.
  2. Magnetic shielded construction.
  3. High current saturation.
  4. For new generation portable product D/D converter unit.
APPLICATIONS

DVD、DSC、PDA,LCD display、Smart phones,HDD,etc.

ORDERING CODE.
BSF□□□□BNRMX
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:±20%,N:±30%)
  4. REEL TAPING
SHAPE & DIMENSIONS(mm)
BSF□□□□BNRMX
DIMENSIONS & CHARACTERISTICSUNIT : mm (inch)
SIZE CODEA
mm
B
mm
C
mm
D
mm
HIJFig
BSF6030BNRMX6.0±0.26.0±0.23.0±0.21.9±0.35.702.002.001
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
