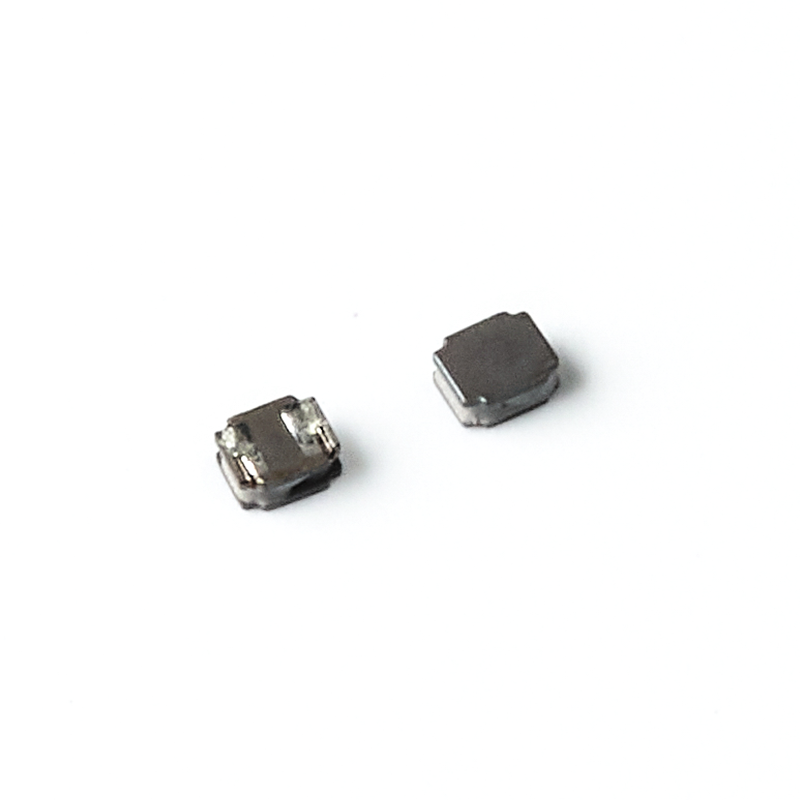

SPECIFICATION OF BSF□□□□BNRM SERIES

FEATURE

1. Low profile construction and miniature size.
2. Magnetic shielded construction.
3. High current saturation.
4. For new generation portable product D/D converter unit.

APPLICATIONS

DVD、DSC、PDA，LCD display、Smart phones，HDD，etc.

ORDERING CODE.

1. PRODUCT TYPE CODE AND SIZE CODE
2. INDUCTANCE
3. INDUCTANCE TOLERANCE(M:20%,N:30%)
4. REEL TAPING

SHAPE & DIMENSIONS(mm)

UNIT : mm (inch)

SIZE CODE	A mm	B mm	C mm	D mm	H	I	J	FIG	Series Spec.
BSF2010BNRM	2.0±0.2	1.6±0.2	1.05max	0.6±0.2	1.1	1	0.9	1
BSF2512BNRM	2.5±0.2	2.1±0.2	1.25max	0.85±0.2	1.4	0.95	0.9	1
BSF3015BNRM	3.0±0.2	3.0±0.2	1.55max	0.9±0.2	2.9	1	1.2	2
BSF6030BNRM	6.0±0.2	6.0±0.2	3.0±0.2	1.9±0.3	5.7	2	2	3
BSF6030BNRMX	6.0±0.2	6.0±0.2	3.0±0.2	1.9±0.3	5.7	2	2	1

1. Other sizes are available upon request.
2. All the data listed in this catalogue are for reference only; King Core reserves
   the right to alter or revise the specifications without prior notification.
