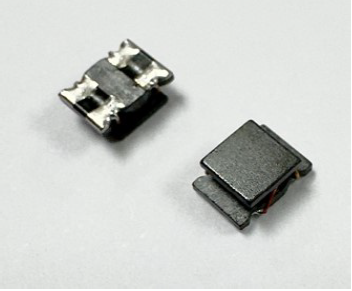

WCM-SCMAUTO SERIES



Applications

SPECIFICATION OF WCMxxxxSE SERIES

FEATURE

1. Low DCR and excellent impedance characteristics.
2. High rated current.
3. Excellent common mode EMI noise suppression.
4. Virtually no distortion of signals.
5. Excellent thermal characteristics over temperature,
compatible with Automotive operating temperature required.

APPLICATIONS

1. EMI suppression for power line , AC/DC adaptor, larger
electronic equipment, perAUTOnal computers, peripherals, IoT etc.
2. Automotive entertainment equipment and control system.

ORDERING CODE.
WCM-SCMAUTO SERIES
  1. Product TypeCode
  2. Product Size Code
  3. DESIGN CODE
  4. IMPEDANCE CODE
  5. TAPING CODE

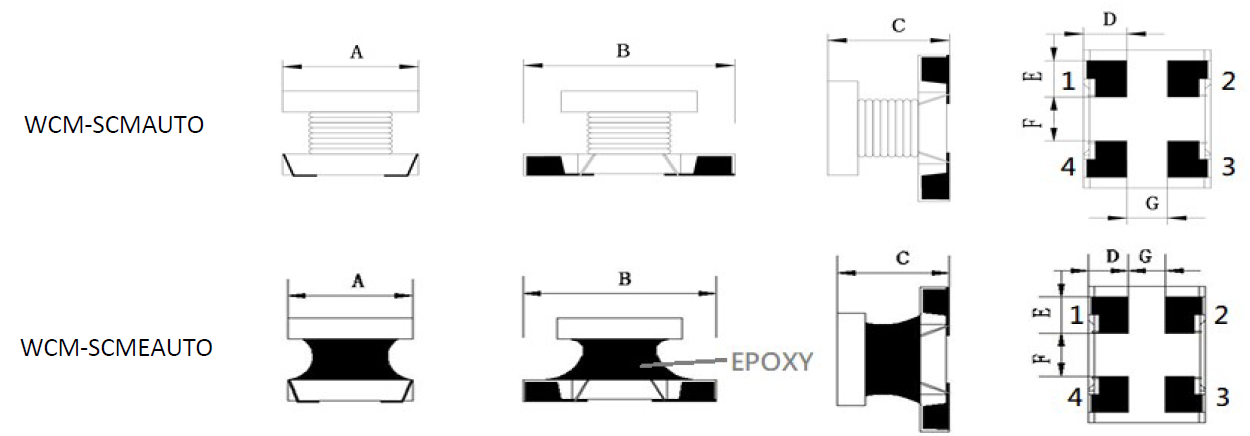

Appearance and Dimensions (mm)
WCM-SCMAUTO SERIES
WCM-SCMAUTO SERIES

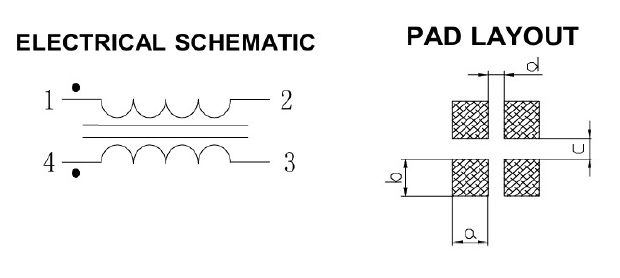

APPEARANCE & DIMENSIONSUNIT : mm (inch)
SIZE CODEA ±0.30B ±0.30C ±0.15D Ref.E Ref.F Ref.G Ref.abcdSeries Spec.
WCM-5025SCMAUTO3.605.002.351.251.701.601.001.802.401.200.80WCM-SCMAUTO SERIES
WCM-5025SCMEAUTO3.605.002.351.251.701.601.001.802.401.200.80WCM-SCMAUTO SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
