SAMPLE kit/folder

EMI Design Kits/ SMT Design Folders

In order to assist the design engineer concerned with EMI suppression, King Core has designed 2 ferrite core sample kits for cables and 7 SMT chip bead/inductor sample folders for PCB on board application.

These kits and folders are designed to reflect the different mechanical and frequency requirements of a wide range of EMI suppression applications. Each kit or folder contains a sampling of coils, chips, cores for use in the original design phase or in situations where a retrofit proves necessary.

* Ferrite Core Design Kits

SAMPLE kit/folder
KC001

Split & Solid Ferrite for Round and Ribbon Cables

KCF,RC,FS ,FP SERIES

SAMPLE kit/folder
KC002

Solid Ferrite for Round Cables

T,RH SERIES

With over 84 different part numbers for wide selection [KC-001; KC-002]

* SMT Chip Bead/Inductor Design Folders

SAMPLE kit/folder
KC005

Multilayer ferrite chip bead for EMI suppression.

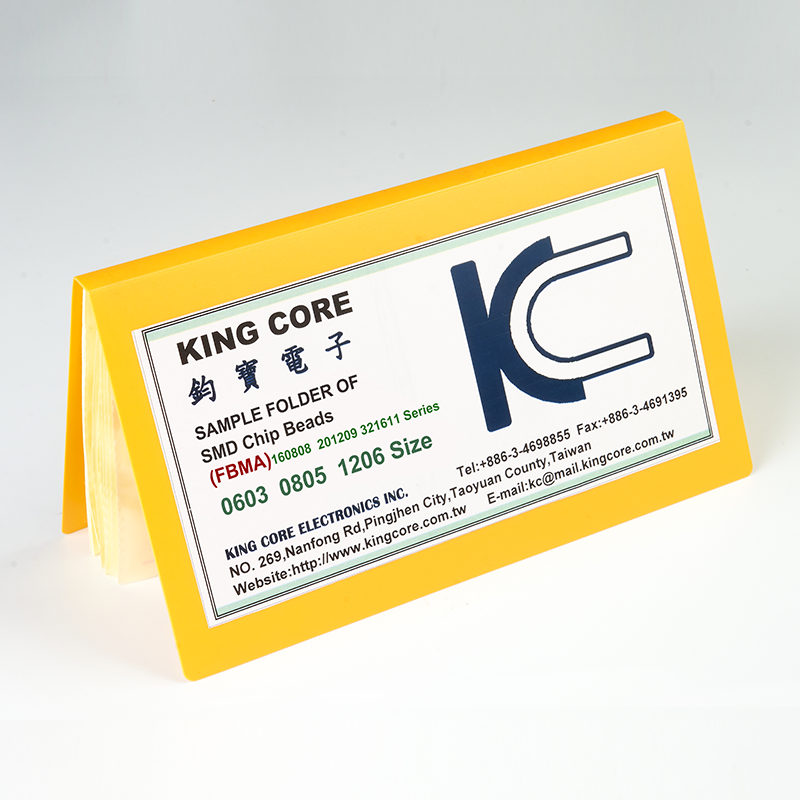

Ferrite Chip Beads
FBMA 0603,0805,1206 SERIES

SAMPLE kit/folder
KC006

Wire-wound common mode choke of EMI suppressor for high speed signal line .

Common Mode Choke WCM SERIES
WCM 0603,0805 SERIES

SAMPLE kit/folder
KC007

Multilayer ferrite chip inductor for filter ,choke or resonance .

Ferrite Chip Beads
FBMA-A HIGH CURRENT RATING SERIES

SAMPLE kit/folder
KC009

Wire-wound ferrite chip inductor for choke ,filter or resonance with higher IDCS .

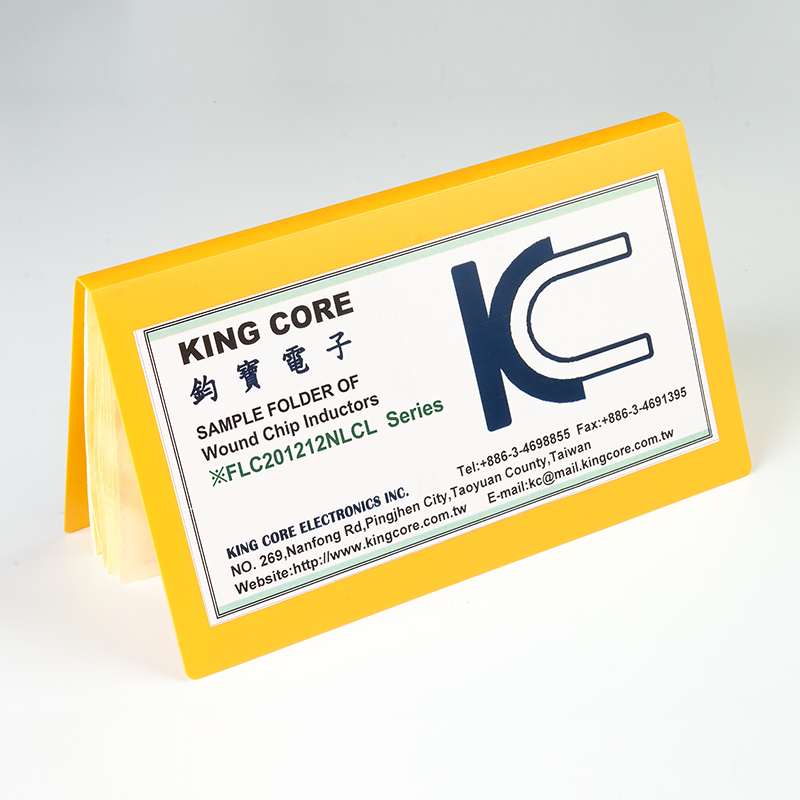

Wound Chip Inductor
FLC201212NLCL SERIES

SAMPLE kit/folder
KC010

Multilayer ferrite chip inductor for filter ,choke or resonance .

Multilayer Ferrite Chip Inductor
FLMA 0603,0805,1206 SERIES

SAMPLE kit/folder
KC011

Multilayer ferrite chip bead of EMI suppressor applied in small equipment .

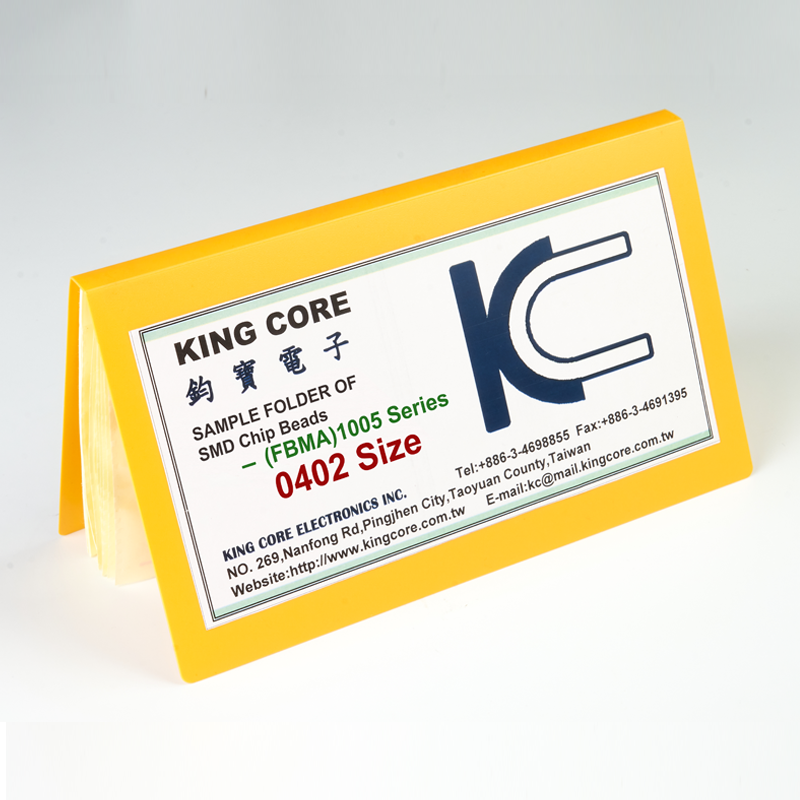

Ferrite Chip Beads
FBMA 0402 SERIES

SAMPLE kit/folder
KC015

Wire-wound ceramic chip inductor for filter ,choke ,resonance with higher Q.

Ceramic Chip Inductor
HLC 0603,0805 SERIES

SAMPLE kit/folder
KC027

Unshielded power choke for cost-critical mass application to regulate current, store energy, filter out unwanted noise, and used in power/voltage regulation.

Power Choke
BS0301~0705 SERIES

SAMPLE kit/folder
KC028

Shielded mini power choke ideal for use in crowded PCB layouts for wearable devices and other high-density circuits.

Power Choke
BSF2010~2512 SERIES

SAMPLE kit/folder
KC029

With medium electrical characteristics and effective costs to apply for where the components are not sensitive to radiation from inductors, we highly recommend using this series.

Power Choke
BSF0302~0705 SERIES
