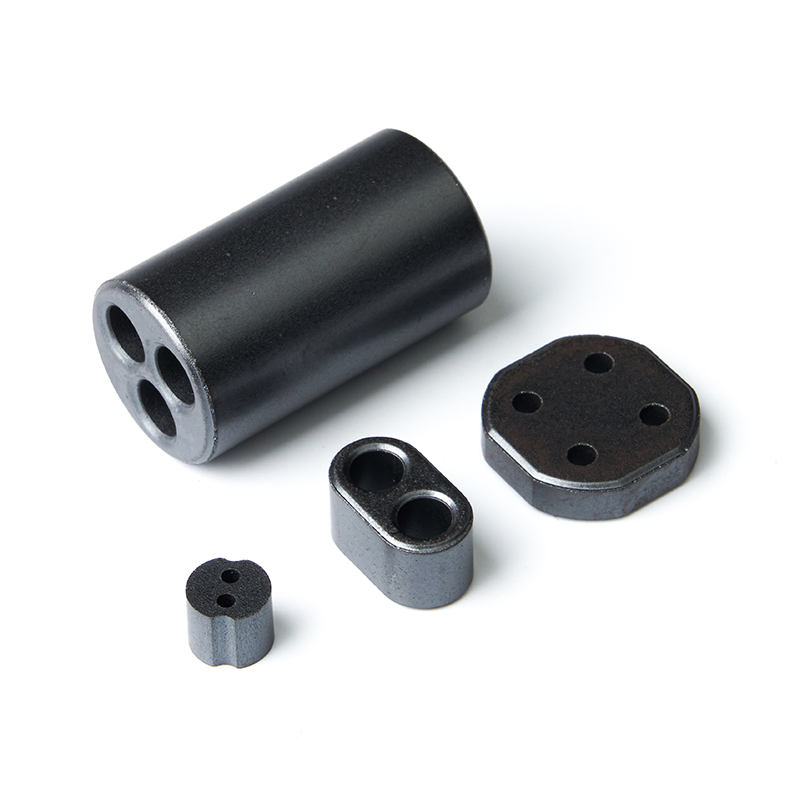

BALUN CORES ( RID RHH & R4H TYPE )
APPLICATIONS
The RID balun cores are used for wideband transformers and balance to unbalance transformers. But today they can be found wide application not only in the input circuits to TV and FM tuners but also in CATV ; MATV networks and installations.
ORDERING CODE.
- MATERIAL
- PRODUCT CODE
- A DIM.
- B DIM.
- D DIM.
- C DIM.
ORDERING CODE.
- MATERIAL
- PRODUCT CODE
- A DIM.
- B DIM.
- C DIM.
SHAPE
| DIMENSIONS & CHARACTERISTICS | UNIT : mm (inch) | |||||
| NO | ORDERING CODE | A | B | C | D | Fig |
|---|---|---|---|---|---|---|
| 1 | RID 2.2*5.5*7.5-0.85 | 2.20±0.20 | 5.50±0.30 | 0.85±0.15 | 7.50±0.30 | 1 |
| 2 | RID 2.5*6*5-1.2 | 2.50±0.20 | 6.00±0.30 | 1.20±0.15 | 5.00±0.20 | 1 |
| 3 | RID 3*2*5-1.25 | 3.00±0.20 | 2.00±0.20 | 1.25±0.15 | 5.00±0.30 | 1 |
| 4 | RID 3*3*5-1.25 | 3.00±0.20 | 3.00±0.20 | 1.25±0.15 | 5.00±0.30 | 1 |
| 5 | RID 3*3*5-1.4 | 3.00±0.20 | 3.00±0.20 | 1.40±0.15 | 5.00±0.30 | 1 |
| 6 | RID 3*5*5-1.5 | 3.00±0.20 | 5.00±0.30 | 1.50±0.15 | 5.00±0.30 | 1 |
| 7 | RID 3.5*7.4*8-1.8 | 3.50±0.20 | 7.40±0.30 | 1.80±0.15 | 8.00±0.30 | 1 |
| 8 | RID 4.1*3.2*7-1.8 | 4.10±0.20 | 3.20±0.20 | 1.80±0.15 | 7.00±0.30 | 1 |
| 9 | RID 4.1*4*7-1.8 | 4.10±0.20 | 4.00±0.20 | 1.80±0.15 | 7.00±0.30 | 1 |
| 10 | RID 4.1*6.3*7-1.8 | 4.10±0.30 | 6.30±0.30 | 1.80±0.15 | 7.00±0.30 | 1 |
| 11 | RID 6.5*4*12-3.8 | 6.50±0.40 | 4.00±0.20 | 3.80±0.20 | 12.00±0.30 | 1 |
| 12 | RID 7.5*4*13-4.1 | 7.50±0.30 | 4.00±0.30 | 4.10±0.20 | 13.00±0.40 | 1 |
| 13 | RID 7.5*7*13-4.1 | 7.50±0.40 | 7.00±0.30 | 4.10±0.20 | 13.00+0.5-0.3 | 1 |
| 14 | RID 7.5*10*13-4.1 | 7.50±0.30 | 10.00±0.30 | 4.10±0.25 | 13.00±0.50 | 1 |
| 15 | R3D 4.5*6.5*12.9-1.7 | 4.50±0.20 | 6.50±0.30 | 12.90±0.30 | 1.70±0.15 | 5 |
| 16 | RHH 6.5*6*1.3 | 6.50±0.30 | 6.00±0.30 | 1.30±0.15 | - | 6 |
| 17 | RHH 6.8*5.5*1.5-S | 6.80±0.30 | 5.50±0.30 | 1.50±0.15 | - | 2 |
| 18 | RHH 7*5.5*1.55 | 7.00±0.30 | 5.50±0.30 | 1.55±0.15 | - | 6 |
| 19 | R3H 16*28*5 | 16.00±0.40 | 28.00±0.60 | 5.00±0.25 | - | 3 |
| 20 | R4H 8*5*1.5 | 8.00±0.30 | 5.00±0.30 | 1.50±0.15 | - | 4 |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
