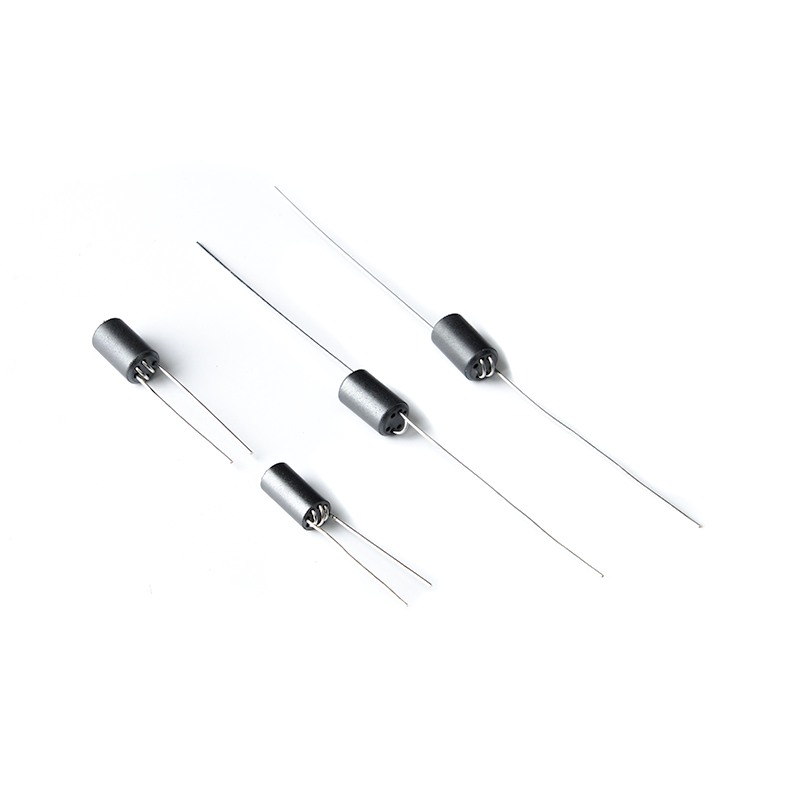

    WIDE BAND CHOKE ( R8H TYPE )

    APPLICATIONS

    The R8H type wide-band chockes are mainly used in the PC boards to filter the EMI from the outsides
    * High performance medium current DC power and signal filtering

    ORDERING CODE.
    R8H
    1. MATERIAL CODE
    2. PRODUCT CODE
    3. SIZE CODE
    4. TURNS WOUND
    SHAPE
    R8H
    R8H

    3.5Ts

    R8H
    R8H

    4Ts

    DIMENSIONS & CHARACTERISTICSUNIT : mm (inch)
    NOORDERING CODEABC
    1R8H 5.2*10*0.85-3.5Ts5.20±0.4010.00±0.400.85±0.20
    2R8H 5.2*10*0.85-4Ts5.20±0.4010.00±0.400.85±0.20
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
