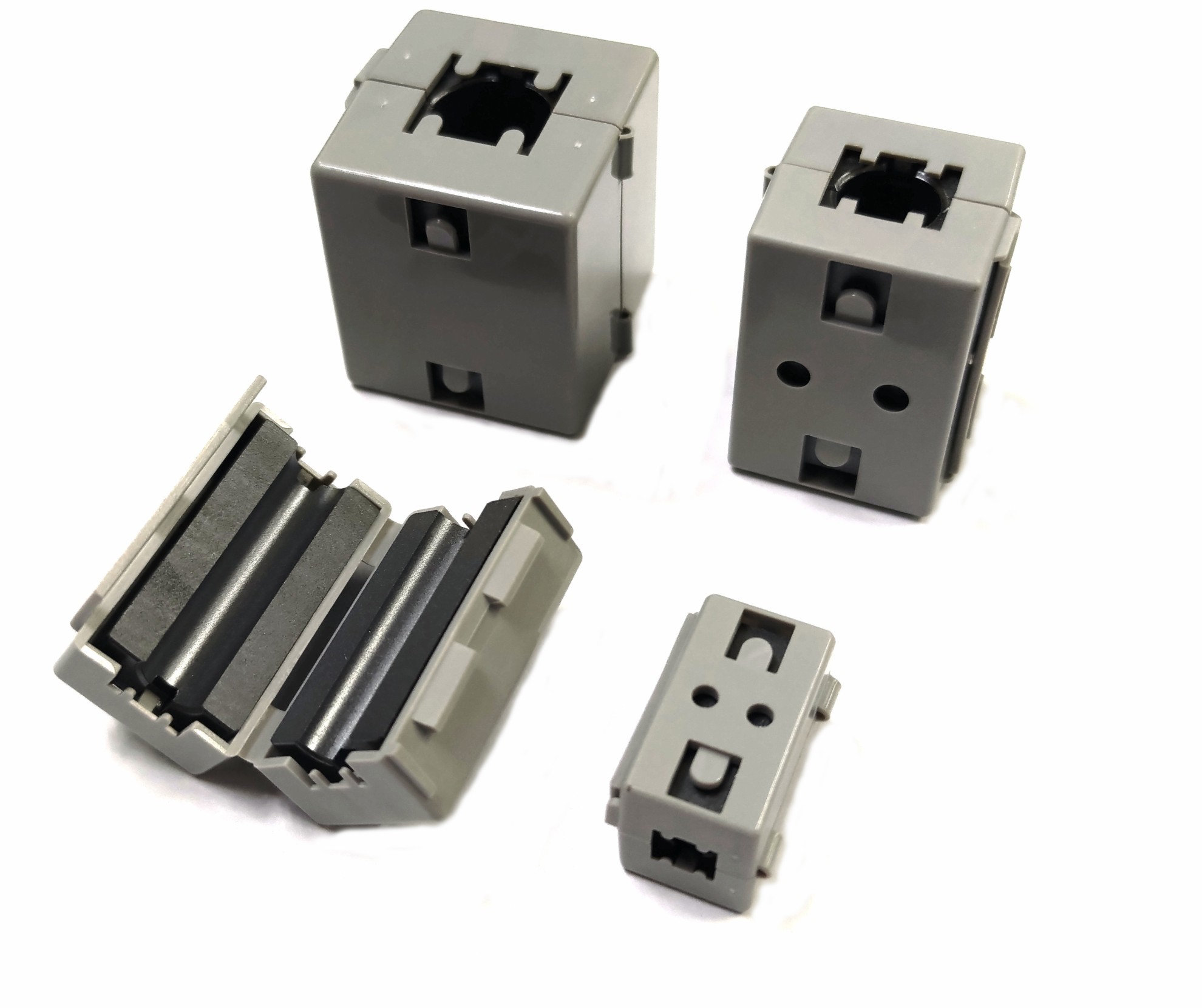

ROUND CABLE SUPPRESSION CORES ( KCFQ TYPE )
APPLICATIONS
Enclosures for channel-type EMI suppressor snapes.
* Internal and external power cables
* Internal cables between PC boards and data connectors
* Compatible with Pb-free RoHS and AEC-Q200
* Material :K17
* Initial Permeability:750
* Case Flame Resistant Rating:UL94V-0
* Plastic Housing Color:Grey
* Curie Temperature:-50 up to +175 °C
ORDERING CODE.
(1) PRODUCT CODE
(2) SIZE CODE
(3) MATERIAL
(4) PLASTIC CLAMPS
SHAPE
FIG 1
| DIMENSIONS & CHARACTERISTICS | UNIT : mm | ||||||||
| NO | ORDERING CODE | A | B | C | D | IMPEDANCE(Ω) 25MHz (TYP) | IMPEDANCE(Ω) 100MHz ±25% | Applicable cable(max) | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KCFQ-50-Y-G1 | 15.00±1.00 | 14.00±1.00 | 6.00±1.00 | 23.00±1.00 | 108 | 236 | 5 | |
| 2 | KCFQ-65-Y-G1 | 20.50±1.00 | 20.00±1.00 | 7.50±1.00 | 33.00±1.00 | 190 | 380 | 6.5 | |
| 3 | KCFQ-100-Y-G1 | 25.50±1.00 | 23.50±1.00 | 11.50±1.00 | 32.50±1.00 | 151 | 305 | 10 | |
| 4 | KCFQ-130-Y-G1 | 31.50±1.00 | 31.00±1.00 | 14.00±1.00 | 32.50±1.00 | 119 | 325 | 13 | |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
