FLMAˍˍIP High Current Series




    Attachment

    Series Specification
    RoHS Data
    Reliability Test

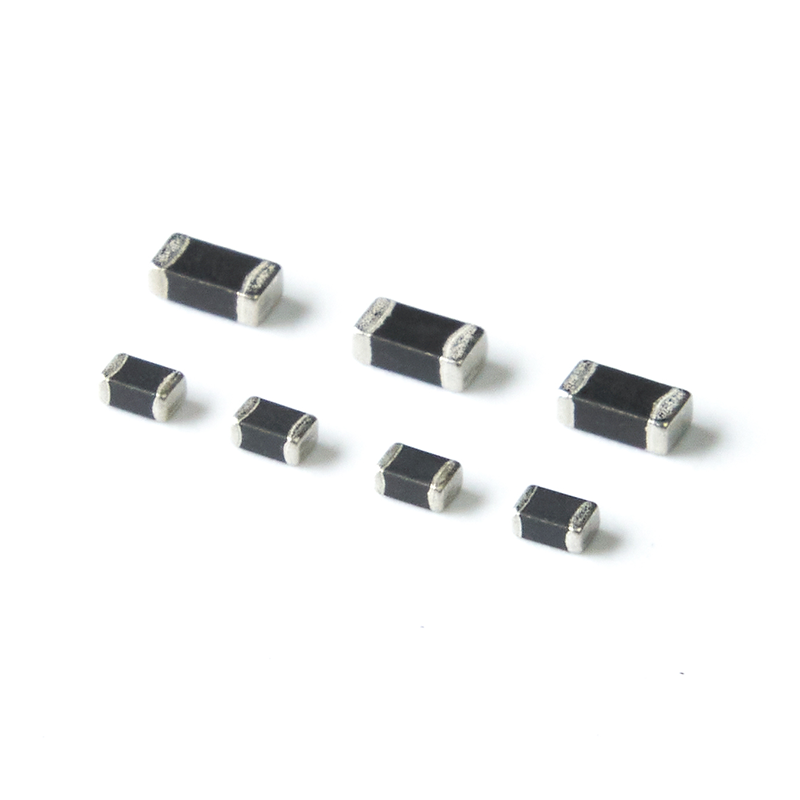

    MULTILAYER CHIP INDUCTORS FLMA-IP SERIES

    APPLICATIONS
    1. Small, light weight and cost saving type of larger, current chip inductor for noise decoupling circuits,
      DC/DC converter for the mobile equipment such as mobile phone, pad, WLAN device…etc.
    2. Low DC resistance.
    3. Low profile type FLMA-201210 with only 1.0mm thickness.
    ORDERING CODE.
    FLMAˍˍIP High Current Series
    1. PRODUCT TYPE CODE
      FLMA:Ferrite Chip Inductor Multilayer
    2. SIZE CODE
    3. INDUCTANCE CODE
      Example:R33=0.33μH
      1R0=1.0μH
      100=10.0μH
    4. INDUCTANCE TOLERANCE
      (K : ±10%; M±20% )
    5. A□□□ MEANS HIGH IDC CURRENT
      Example:  A08 means IDC = 800mA
      A035 means IDC = 350mA
    6. TAPING CODE
    SHAPE & DIMENSIONS.
    FLMAˍˍIP High Current Series

    UNIT : mm (inch)

    TYPEABCD
    FLMA-160809IP
    (0603)    		1.60±0.20
    (0.063±0.008)    		0.80±0.20
    (0.031±0.008)    		0.95max
    (0.037max)    		0.1 ~ 0.5
    (0.004~0.020)
    FLMA-201210IP
    (0805)    		2.00±0.20
    (0.079±0.008)    		1.25±0.20
    (0.049±0.008)    		1.0max
    (0.039max)    		0.2~0.8
    (0.008~0.031)
    FLMA-201610IP
    (0806)    		2.00±0.20
    (0.079±0.008)    		1.60±0.20
    (0.063±0.008)    		1.0max
    (0.039max)    		0.2~0.8
    (0.008~0.031)
    FLMA-252010IP
    (1008)    		2.50±0.20
    (0.098±0.008)    		2.00±0.20
    (0.079±0.008)    		1.0max
    (0.039max)    		0.2~0.8
    (0.008~0.031)
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
