XD SERIES

    Attachment

    Series Specification

    SMD COMMON MODE CHOKE --> XD TYPE

    FEATURE
    1. High impedance for common mode noise and low impedance for differential mode signal.
    2. Large rated current available.
    3. Wide band or sharp type impedance curve available.
    4. SMD or DIP available.
    APPLICATIONS

    Prevention of common mode noise on signal Lines and power lines for computer related or electronic products.

    ORDERING CODE.
    XD SERIES
    1. MATERIAL CODE
    2. CORE TYPE
    3. S : SMD ; C : CAPPED SMD ; D : DIP
    4. ROHS CODE
    5. MAX BASE DIMENSION(mm)
    6. MAX HEIGHT(ABOVE PCB IN mm)
    7. DESIGN CODE

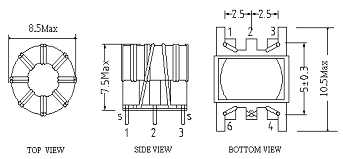

    Appearance and Dimensions (mm)
    DXDA0708-01 IXDA0708-01

    XD SERIES

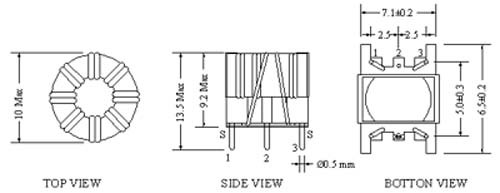

    AXDA0708-02

    XD SERIES

    UNIT : mm (inch)

    ORDERING CODEBASEWINDINGWIRINGZ
    (Average)ohm    		RATED CURRENT(mA)RDC(ohm)
    max
    DXDA0708-01DIP(5*5mm)ψ0.35*8.5TS*21-6;3-4645±25%/100MHz35000.026
    IXDA0708-01DIP(5*5mm)ψ0.35*8.5TS*21-6;3-41339±25%/30MHz35000.025
    AXDA0708-02DIP(5*5mm)ψ0.35*8.5TS*21-6;3-4405min/100MHZ30000.05
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
