XC SERIES

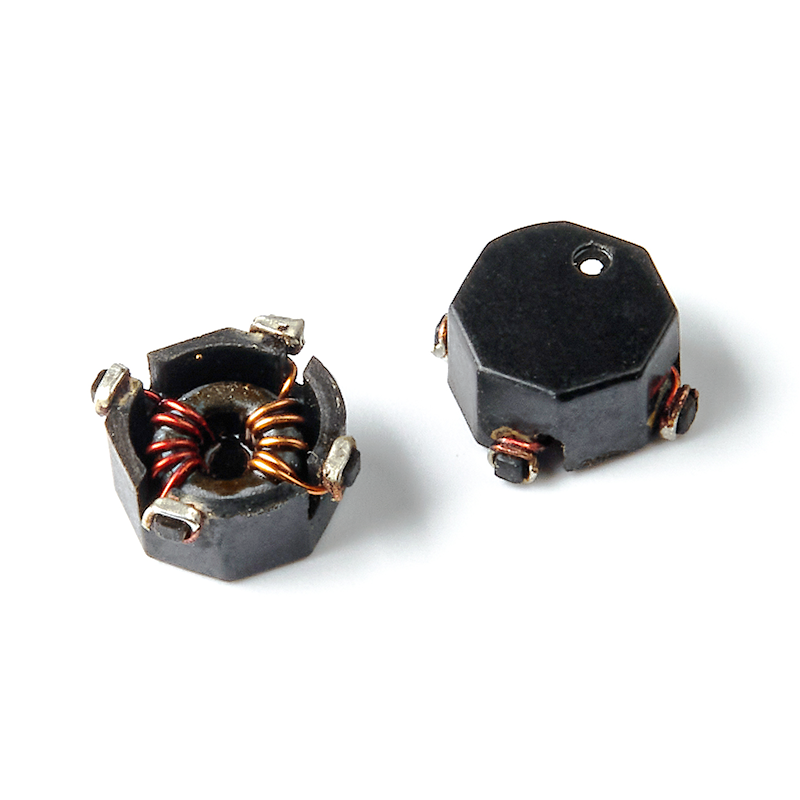

SMD COMMON MODE CHOKE --> XC TYPE
ORDERING CODE.
- MATERIAL CODE
- CORE TYPE
- S : SMD ; C : CAPPED SMD ; D : DIP
- MAX BASE DIMENSION(mm)
- MAX HEIGHT(ABOVE PCB IN mm)
- DESIGN CODE
Appearance and Dimensions (mm)
UNIT : mm (inch)
| ORDERING CODE | A | B | C | D | WINDING | WIRING | Z±25% (Average)ohm | RATED CURRENT (mA) | RDC(ohm) max |
|---|---|---|---|---|---|---|---|---|---|
| IXC1060-01 | 10 | 4 | 10.0max | 6.0max | ψ0.35*4.5TS*2 | 1-2;3-4 | 512/90MHz | 4000 | 0.035 |
| IXC1270-01 | 12.5 | 6 | 12.0max | 7.5max | ψ0.35*6.5TS*2 | 1-4;2-3 | 981/60MHz | 4000 | 0.022 |
| IXC1270-03 | 12.5 | 6 | 12.0max | 7.5max | ψ0.35*6.5TS*2 | 1-4;2-3 | 451/100MHz | 2500 | 0.05 |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
