    Series Specification

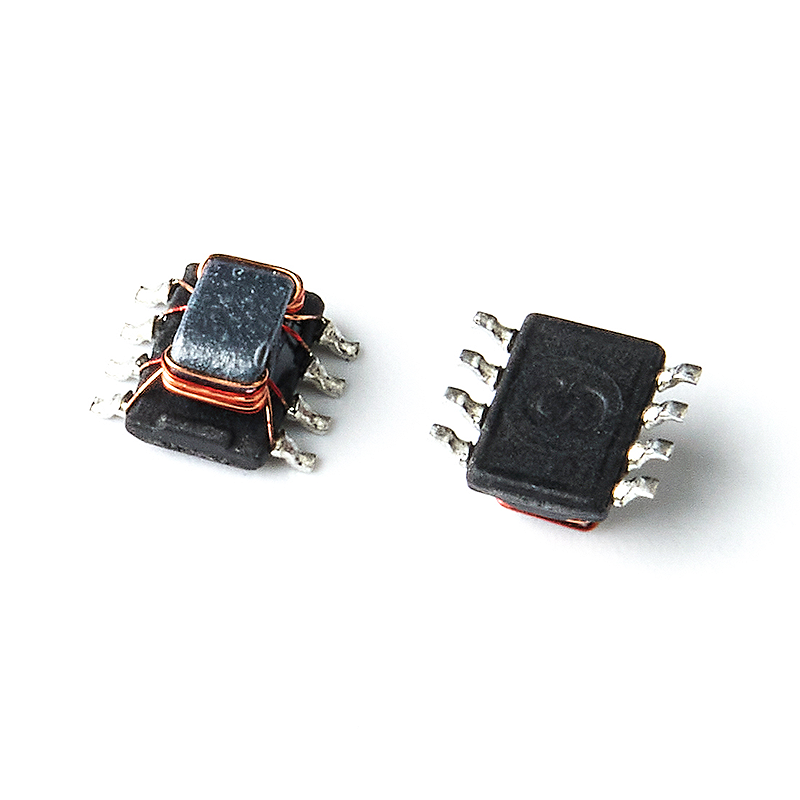

    SMD COMMON MODE CHOKE --> TS□ TYPE

    FEATURE
    1. High impedance for common mode noise and low impedance for differential mode signal.
    2. Large rated current available.
    3. Wide band or sharp type impedance curve available.
    4. SMD or DIP available.
    APPLICATIONS

    Prevention of common mode noise on signal Lines and power lines for computer related or electronic products.

    ORDERING CODE.
    TS SERIES
    1. MATERIAL CODE
    2. CORE TYPE
    3. S : SMD ; C : CAPPED SMD ; D : DIP
    4. RoHS Code
    5. MAX BASE DIMENSION(mm)
    6. MAX HEIGHT(ABOVE PCB IN mm)
    7. DESIGN CODE
    Appearance and Dimensions UNIT: (mm)
    0402 SERIES

    TS SERIES
    0705 SERIES

    TS SERIES
    1206 SERIES

    TS SERIES

    UNIT : mm (inch)

    ORDERING CODEBASE SPECWINDINGWIRINGIMPEDANCE+/-25%RATED CURRENTRDC(max)
    BTSA0402-01SMD-8P(5*5mm)ψ0.09*3.5TS*2*21-8;2-7;3-6;4-5280 OHM/100MHz600mA0.300 ohm
    BTSA0402-09SMD-8P(5*5mm)ψ0.08*4.5TS*21-8;2-7;3-6;4-5250 OHM/100MHz800mA0.1500 ohm
    BTSA0705-01SMD-8P(6*7mm)ψ0.12*3TS*2*21-8;2-7;3-6;4-5210 OHM/100MHz650mA0.100 ohm
    BTSA0705-04SMD-8P(6*7mm)ψ0.12*3.5TS*21-8;2-7;3-6;4-5260 OHM/100MHz800mA0.080 ohm
    BTSA1206-01SMD-8P(10*12.5mm)ψ0.26*2.5TS*21-5;2-6668 OHM/100MHz5000mA0.100 ohm
    JTSA1206-02SMD-8P(10*12.5mm)ψ0.40*3.5TS*1*21-8;4-51094 OHM/100MHz5000mA0.100 ohm
    BTSA1206-02SMD-8P(10*12.5mm)ψ0.30*2.5TS*21-8;4-5730 OHM/100MHz2500mA0.100 ohm
    BTSA1206-03SMD-8P(10*12.5mm)ψ0.25*2.5TS*31-5;2-6;3-7570 OHM/100MHz4000mA0.100 ohm
    BTSA1206-04SMD-8P(10*12.5mm)ψ0.26*2.5TS*2*21-8;2-7;3-6;4-5440 OHM/100MHz5000mA0.022 ohm
    BTSA1206-05SMD-8P(10*12.5mm)ψ0.12*2.5TS*41-8;2-7;3-6;4-5604 OHM/100MHz1500mA0.100 ohm
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
