    TOROIDAL CORES ( T & RH TYPE )

    APPLICATIONS

    The T type ring cores are mainly used for coupling transformers ; balancing coils ; fixed coils and filter coils.
    The RH type bead cores are mainly produced for the cable wire assemblers and MATV CATV makers.
    * Internal and external computer data and power cables

    ORDERING CODE.
    T/RH
    1. MATERIAL
    2. PRODUCT CODE
    3. A DIM.
    4. B DIM.
    5. C DIM.

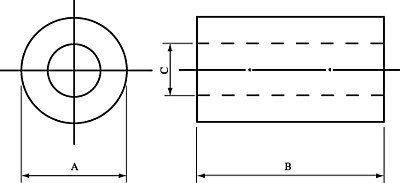

    SHAPE
    T/RH

    FIG1

    ORDERING CODE.
    T/RH
    1. MATERIAL
    2. PRODUCT CODE
    3. A DIM.
    4. B DIM.
    5. C DIM.
    SHAPE
    T/RH

    FIG2

    DIMENSIONS & CHARACTERISTICSUNIT : mm (inch)
    NOORDERING CODEABCFig
    1RH 2.5*4*0.82.50±0.154.00±0.300.80±0.152
    2RH 2.5*7*0.82.50±0.157.00±0.300.80±0.152
    3RH 2.5*12*1.32.50±0.1512.00±0.401.30±0.152
    4T 3*2*13.00±0.152.00±0.201.00±0.151
    5T 3*2*1.23.00±0.152.00±0.201.20±0.151
    6RH 3*3*13.00±0.153.00±0.201.00±0.152
    7RH 3*3*1.23.00±0.153.00±0.201.20±0.152
    8RH 3*4*13.00±0.154.00±0.301.00±0.152
    9RH 3*6*13.00±0.156.00±0.301.00±0.152
    10RH 3.4*11.2*1.13.40±0.1511.20±0.401.10±0.152
    11T 3.5*0.8*1.53.50±0.150.80±0.201.50±0.151
    12T 3.5*1.25*1.83.50±0.151.25±0.201.80±0.151
    13T 3.5*1.3*1.83.50±0.151.30±0.201.80±0.151
    14T 3.5*1.54*1.53.50±0.151.54±0.201.50±0.151
    15T 3.5*2*1.23.50±0.152.00±0.201.20±0.151
    16T 3.5*2.5*0.83.50±0.152.50±0.200.80±0.151
    17T 3.5*3*0.83.50±0.153.00±0.200.80±0.151
    18T 3.5*3*1.03.50±0.153.00±0.201.00±0.151
    19T 3.5*3*1.23.50±0.153.00±0.201.20±0.151
    20T 3.5*3*1.33.50±0.153.00±0.201.30±0.151
    21T 3.5*3*1.43.50±0.153.00±0.201.40±0.151
    22T 3.5*3*1.53.50±0.153.00±0.201.50±0.151
    23T 3.5*3*1.73.50±0.153.00±0.201.70±0.151
    24T 3.5*3*1.83.50±0.153.00±0.201.80±0.151
    25T 3.5*3.25*1.33.50±0.153.25±0.201.30±0.151
    26T 3.5*3.25*1.43.50±0.153.25±0.201.40±0.151
    27T 3.5*3.25*1.53.50±0.153.25±0.201.50±0.151
    28RH 3.5*3.5*0.83.50±0.153.50±0.200.80±0.152
    29RH 3.5*3.5*1.23.50±0.153.50±0.201.20±0.152
    30RH 3.5*3.5*1.73.50±0.153.50±0.201.70±0.152
    31RH 3.5*3.5*1.83.50±0.153.50±0.201.80±0.152
    32RH 3.5*4*13.50±0.154.00±0.301.00±0.152
    33RH 3.5*4*1.23.50±0.154.00±0.301.20±0.152
    34RH 3.5*4*1.33.50±0.154.00±0.301.30±0.152
    35RH 3.5*4*1.53.50±0.154.00±0.301.50±0.152
    36RH 3.5*4.5*0.83.50±0.154.50±0.300.80±0.152
    37RH 3.5*4.7*0.83.50±0.154.70±0.300.80±0.152
    38RH 3.5*5*0.83.50±0.155.00±0.300.80±0.152
    39RH 3.5*5*1.23.50±0.155.00±0.301.20±0.152
    40RH 3.5*5*1.33.50±0.155.00±0.301.30±0.152
    41RH 3.5*5*1.53.50±0.155.00±0.301.50±0.152
    42RH 3.5*5*1.83.50±0.155.00±0.301.80±0.152
    43RH 3.5*6*0.83.50±0.156.00±0.300.80±0.152
    44RH 3.5*6*13.50±0.156.00±0.301.00±0.152
    45RH 3.5*6*1.23.50±0.156.00±0.301.20±0.152
    46RH 3.5*6*1.33.50±0.156.00±0.301.30±0.152
    47RH 3.5*6*1.53.50±0.156.00±0.301.50±0.152
    48RH 3.5*6*1.83.50±0.156.00±0.301.80±0.152
    49RH 3.5*7*1.23.50±0.157.00±0.301.20±0.152
    50RH 3.5*7.5*0.83.50±0.157.50±0.300.80±0.152
    51RH 3.5*8*0.83.50±0.158.00±0.300.80±0.152
    52RH 3.5*8*13.50±0.158.00±0.301.00±0.152
    53RH 3.5*9*0.83.50±0.159.00±0.300.80±0.152
    54RH 3.5*9*1.33.50±0.159.00±0.301.30±0.152
    55RH 3.5*9.5*0.83.50±0.159.50±0.300.80±0.152
    56RH 3.5*14*0.83.50±0.1514.00±0.400.80±0.152
    57T 3.94*2.54*2.293.94±0.152.54±0.202.29±0.151
    58T 4*1.4*2.24.00±0.201.40±0.202.20±0.151
    59T 4*1.5*24.00±0.201.50±0.202.00±0.151
    60T 4*1.7*2.24.00±0.201.70±0.202.20±0.151
    61T 4*2*1.54.00±0.202.00±0.201.50±0.151
    62T 4*2*24.00±0.202.00±0.202.00±0.151
    63T 4*3*1.54.00±0.203.00±0.201.50±0.151
    64T 4*3*24.00±0.203.00±0.202.00±0.151
    65RH 4*4*1.54.00±0.204.00±0.301.50±0.152
    66RH 4*4*24.00±0.204.00±0.302.00±0.152
    67RH 4*5*1.54.00±0.205.00±0.301.50±0.152
    68RH 4*5*24.00±0.205.00±0.302.00±0.152
    69RH 4*5.5*1.54.00±0.205.50±0.301.50±0.152
    70RH 4*6*24.00±0.206.00±0.302.00±0.152
    71RH 4*7*24.00±0.207.00±0.302.00±0.152
    72RH 4*8*24.00±0.208.00±0.302.00±0.152
    73RH 4*10*1.54.00±0.2010.00±0.401.50±0.152
    74RH 4*10*24.00±0.2010.00±0.402.00±0.152
    75RH 4*12*24.00±0.2012.00±0.402.00±0.152
    76RH 4*12.5*1.54.00±0.2012.50±0.401.50±0.152
    77T 4.1*4*1.64.10±0.204.00±0.301.60±0.151
    78T 4.14*3.2*1.64.14±0.203.20±0.201.60±0.151
    79T 4.3*2.5*2.84.30±0.202.50±0.202.80±0.151
    80T 4.4*1.4*2.84.40±0.201.40±0.202.80±0.151
    81T 4.5*3.2*2.54.50±0.203.20±0.202.50±0.151
    82RH 4.5*4.8*2.54.50±0.204.80±0.302.50±0.152
    83RH 4.5*7*2.54.50±0.207.00±0.302.50±0.152
    84RH 4.5*12*2.64.50±0.2012.00±0.402.60±0.152
    85RH 4.6*11*24.60±0.2011.00±0.402.00±0.152
    86RH 4.83*6.35*2.294.83±0.206.35±0.302.29±0.152
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
