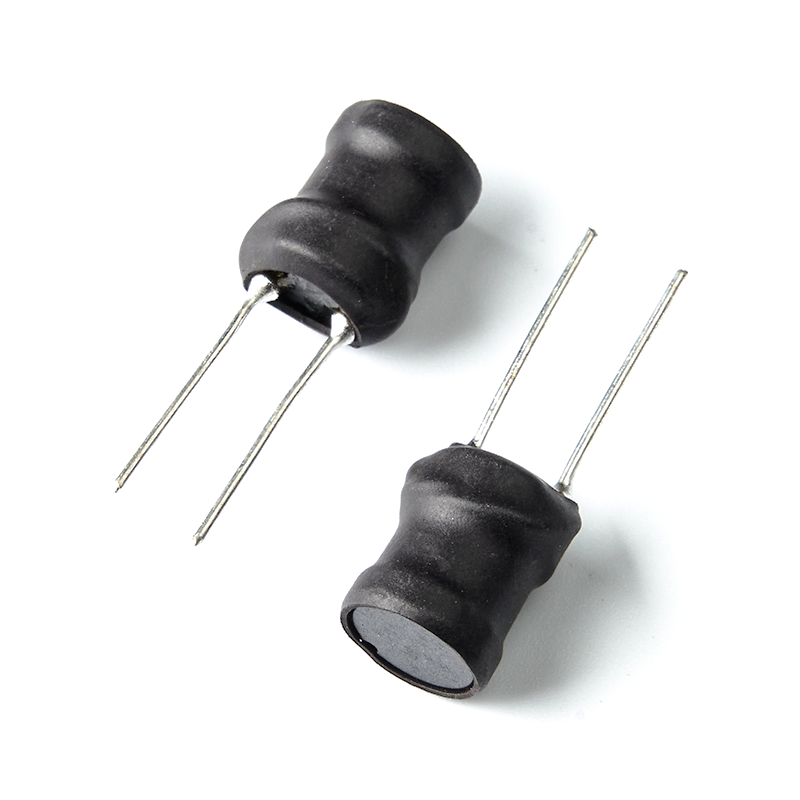

    FIXED INDUCTOR---> CD SERIES

    FEATURE
    1. Open Magnetic circuit construction
    2. Low cost and high reliability
    APPLICATIONS

    Notebook ; Inkjet printer ; Copying machine ; ADSL modem ; Cellular phone ; Display monitor ; Video tape recorder ; Video camera ; Color TV ; Lighting and Car electronics.

    ORDERING CODE.
    CD
    1. PRODUCT TYPE CODE AND SIZE CODE
    2. INDUCTANCE
    3. INDUCTANCE TOLERANCE
      (K:±10%;M:±20%;N:±30%)
    4. TUBE
    5. DESIGN CODE
    ORDERING CODE.
    CD
    1. PRODUCT TYPE CODE AND SIZE CODE
    2. INDUCTANCE
    3. INDUCTANCE TOLERANCE
      (K:±10%;M:±20%;N:±30%)
    4. INDUCTANCE HIGH CURRENT RATING
    5. TUBE

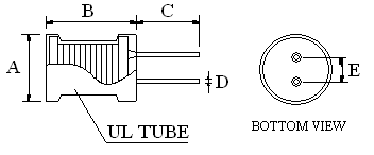

    CONFIGURATIONS
    CD

    UNIT : mm (inch)

    SIZE CODEA
    (MAX)    		B
    (MAX)    		C
    ±2.0    		ΦD
    ±0.1    		E
    ±0.5
    CD2688.512150.63
    CD28101015100.655
    CD281210.515.5150.655
    CD210121317150.86
    CD210161319150.86
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
