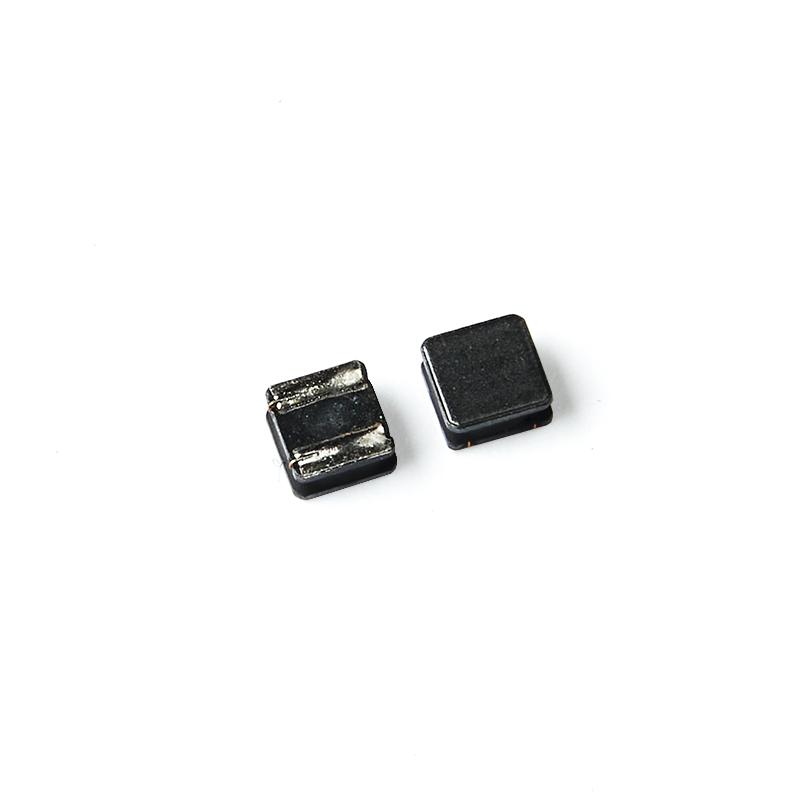

SPECIFICATION OF BSF LQHMU SERIES

FEATURE
  1. Low profile construction and miniature size.
  2. Magnetic shielded construction.
  3. High current saturation.
  4. For new generation portable product D/D converter unit.
APPLICATIONS

DVD、DSC、PDA,LCD display、Smart phones,HDD,etc.

ORDERING CODE.
BSF-LQHMU SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:20%,N:30%)
  4. REEL TAPING
Appearance and Dimensions (mm)
Fig1

BSF-LQHMU SERIES

Fig2

BSF-LQHMU SERIES


UNIT : mm (inch)

SIZE CODEA 0.1B 0.1C(max)D(Typ.)E 0.2F 0.2HIJFigSeries Spec.
BSF3010LQHMU3312.70.91.22.711.22BSF-LQHMU SERIES
BSF3015LQHMU331.52.70.91.22.711.22BSF-LQHMU SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
