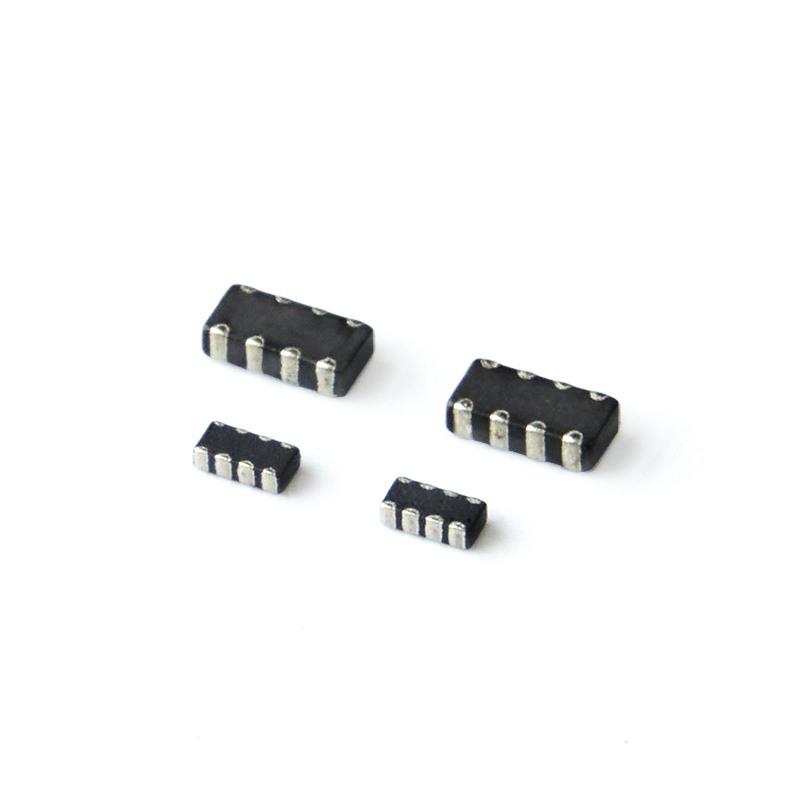

BA4A-10 Array Type For High Speed Signal Line





    Attachment

    Series Specification
    RoHS Data
    Packaging
    Reliability Test

    MULTILAYER CHIP BEAD ARRAY

    FEATURES
    1. Availing in a wide range of impedance values and providing excellent EMI suppression characteristics for various types of noise.
    2. Availing in 4 lines by a single smallest SMT chips, it can very usefully adopted in high density circuit designs. speciallyultra low profile only 0.5mm for thinner designed product.
    3. Heat generation and crosstalk between adjacent circuits is minimized.
    4. Excellent solderability.
    APPLICATIONS
    1. Waveform correction in personal computers, electric equipments, communication equipments, OA equipments,and provides radiated noise countermeasures in interfaces and harness connecting parts.Best replacement of mini resistor array.
    2. Prevents noise intrusion in videos, LCD, camera & smart phone, Pad, module, etc.
    3. Parallel signal line.
    ORDERING CODE.
    BA4A-10 Array Type For High Speed Signal Line
    1. TYPE CODE
      BA4: Ferrite Chip Bead Array 4 elements
      A: RoHS Code
    2. DESIGN CODE
      11: For general purpose
      10: For high speed signal application
    3. DIMENSIONS
      The first two digits:Length(mm)
      The second two digits:Width(mm)
      The last two digits:Thickness(mm)
    4. IMPEDANCE(at 100MHz)
      Example:600=60Ω ;121=120Ω ;102=1000Ω
    5. PACKING
      B:Bulk pack
      T:Tape&Reel=ψ178mm[7inches])
    SHAPE & DIMENSIONS.
    BA4A-10 Array Type For High Speed Signal Line

    UNIT : mm (inch)

    TYPELWTC1C2DM
    BA4A-10-201005
    (0804)    		2.00±0.20
    [0.079±0.008]    		1.00±0.20
    [0.040±0.008]    		0.55±0.10
    [0.022±0.004]    		0.25±0.15
    [0.010±0.006]    		0.25±0.15
    [0.010±0.006]    		0.50±0.10
    [0.020±0.004]    		0.125±0.10
    [0.005±0.004]
    BA4A-10-321608
    (1206)    		3.20±0.20
    [0.126±0.008]    		1.60±0.2
    [0.063±0.008]    		0.80±0.20
    [0.031±0.008]    		0.40±0.15
    [0.016±.0.006]    		0.20~0.45
    [0.008~0.018]    		0.80±0.10
    [0.031±0.004]    		0.20±0.10
    [0.008±0.004]
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
